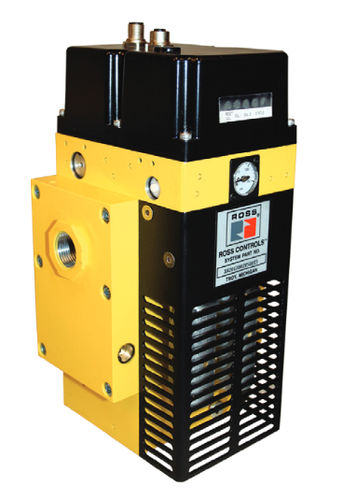

Pressure-control valve M DM2

modular

Modular Double Valve with Integrated Soft Start Control Reliable Energy Isolation Port Size 3/4 FEATURES: •Proven ROSS DM2 ® technology with integrated soft start •Soft start application of air to the system when energized; can be adjusted for slower or faster buildup of system pressure • Rapid exhaust of downstream air when de-energized to remove stored energy and allow safe access •Modular mounting for flexible configured air entry system assembly; order a single part number to meet your specific application requirements •Dynamic Monitoring With Memory: Memory, monitoring, and air flow control functions are integrated into two identical valve elements. Valves lock-out if asynchronous movement of valve elements occurs during actuation or de-actuation, resulting in a residual outlet pressure of less than 1% of supply.
