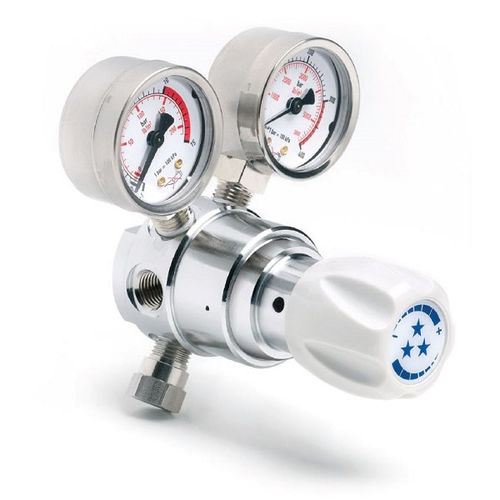

High-pressure pressure regulator SC seriesfor oxygenfor nitrogendiaphragm
Add to favorites
Compare this product
Characteristics
- Product
- for oxygen, for nitrogen
- Technology
- diaphragm, cartridge
- Number of stages
- single-stage
- Material
- nickel-plated brass, stainless steel
- Applications
- industrial, high-pressure
- Other characteristics
- compact, with pressure gauge
- Pressure
Max.: 50 bar
(725.19 psi)Min.: 1.5 bar
(21.76 psi)- Flow
Max.: 30 m³/h
(1,059.44 ft³/h)Min.: 0.2 m³/h
(7.06 ft³/h)- Orifice diameter
0.13 in
- Temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description
Key advantages
- This single stage regulator is based on the Cartridge seat Technology
- Compact, ergonomic and lightweight design
- Accurate pressure control for reliable service
- Handwheel in compliance with ATEX regulation and easy to clean
- Could be equipped with a shut off valve
- Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM)
