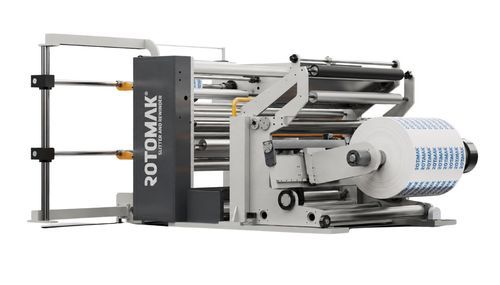

Automatic slitter-rewinder RSR-III

with two rewinding shaftsfor labelsfor plastic films

RSR-III Dual Shaft Slitter Rewinder

Description
RSR-III is equipped with a rear unwind system for straightforward roll loading and secure operation. The dual-shaft rewinding arrangement enables simultaneous winding of multiple rolls, supporting production flexibility and continuous throughput control.

General
Suitable for slitting plastic films, paper, laminates and other materials used in flexible packaging and label converting industries.

Features

• Universal design for standard slitting tasks as well as narrow-web slitting and label stock applications.
• Shaftless unwinder: the unfired roll on the shaftless unwind is lifted from floor level to working position for loading.
• Unwind and rewind operations are performed from the same side for compact workflow.
• Web guiding system provides edge detection and print-register tracking for accurate web alignment.
• Drives: asynchronous AC motors with digital inverters.
• Two-motor version: one motor for the traction unit, the second motor for both winding stations.
• Three-motor version: one motor for the traction unit, two independent motors for each winding station.
• Automatic and programmable tension control on both unwind and rewind stations.
• Touch operator panel for data entry, recipe storage and diagnostics.
• Electrical and pneumatic controls located for easy access and maintenance.
• Fast loading and unloading of finished rolls.

Technical Features

• Unwinder diameter: 1400 mm
• Unwinder width: 1300–1600 mm
• Rewinder diameter: 600–800 mm
• Rewinding type: friction ring
• Mechanical speed: 600 m/min

We Manufacture According to Your Needs, Not Standard Limits.
Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references).Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references). Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.We Manufacture According to Your Needs, Not Standard Limits.
Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.

Applications
Paper, laminates, post-print, flexible packaging and label converting.
