Duplex turret slitter-rewinder RSR-II

automaticwith automatic spool loadercompact

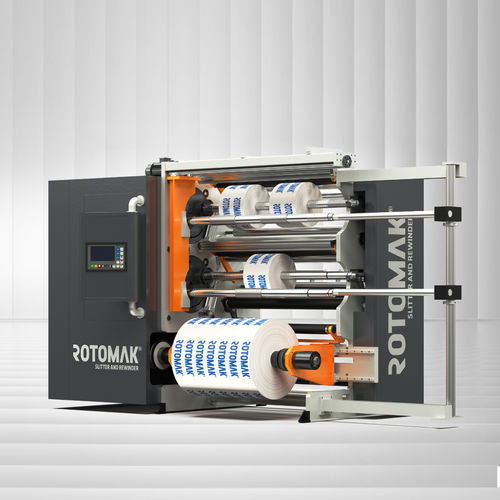

RSR-II Turret Compact Slitter Rewinder
The RSR-II is a turret-type compact slitter rewinder designed for continuous production. The turret unwind/rewind system enables automatic roll change without stopping the line, ensuring uninterrupted operation for high-speed converting applications.

Features

• Universal machine suitable for standard jobs, narrow-width slitting and label stock applications.
• Shaftless (coreless) unwinder with floor-to-working-position roll loading for safe and ergonomic handling.
• Unwinding and rewinding operations performed on the same side to optimize floor layout.
• Web alignment system supporting edge guiding and print registration tracking.
• Asynchronous AC motors with digital inverters for controlled drive performance.
• Two-motor version: one motor for the pull unit, the other for both winding stations.
• Three-motor version: one motor for the pull unit, two motors for each winding station independently.
• Automatic and programmable tension control for both unwinding and rewinding operations.
• Touch operator panel for data entry, display, recipe storage and diagnostics.
• Electrical and pneumatic controls positioned for easy access and maintenance.
• Fast loading and unloading of finished rolls to reduce downtime.

We Manufacture According to Your Needs, Not Standard Limits.
Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references).Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references). Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.We Manufacture According to Your Needs, Not Standard Limits.
Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.
Applications

• Labels, packaging, narrow roll converting applications.

Technical specifications

• Unwinder diameter: 800 mm
• Unwinder width: 1300 mm
• Rewinder diameter: 450 mm
• Mechanical speed: 600 m/min
