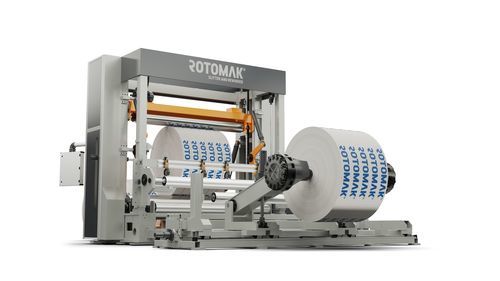

Automatic slitter-rewinder SLICING RSR-V

high-speedjumbofor labels

RSR-V Jumbo Slitter-Rewinder | Heavy-duty slitting and rewinding machine
The RSR-V is designed for processing jumbo rolls with an unwinder diameter up to 2000 mm and web widths up to 2500 mm. It delivers mechanical speeds up to 500 m/min and is configured for continuous production environments.

General features

• Dual-spindle slitting and rewinding configuration.
• Suitable for plastic films, paper, laminates and flexible packaging materials.
• Universal machine for standard slitting, narrow-web slitting and label stock applications.
• Shaftless unwinder: roll is lifted from floor level into operation position.
• Unwind and rewind operations located on the same side for compact line layout.
• Web alignment system with edge sensors and register mark tracking for precise positioning.
• Asynchronous AC motors with digital inverters.
• 2-motor version: one motor for the pull unit, second motor drives both rewind stations.
• 3-motor version: one motor for the pull unit, two separate motors for each rewind station.
• Automatic, programmable tension control during unwind and rewind.
• Touchscreen operator panel for data entry, recipe storage and diagnostics.
• Electrical and pneumatic controls positioned for easy access.
• Quick loading and unloading of finished rolls.

Applications
Processing of jumbo rolls in converting lines: flexible packaging, label stock, industrial film and paper production.

Technical data

• Unwinder diameter: 2000 mm
• Unwinder width: 2500 mm
• Rewinder diameter: 1800 mm
• Mechanical speed: 500 m/min

We Manufacture According to Your Needs, Not Standard Limits.
Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references).Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references). Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.We Manufacture According to Your Needs, Not Standard Limits.
Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.
