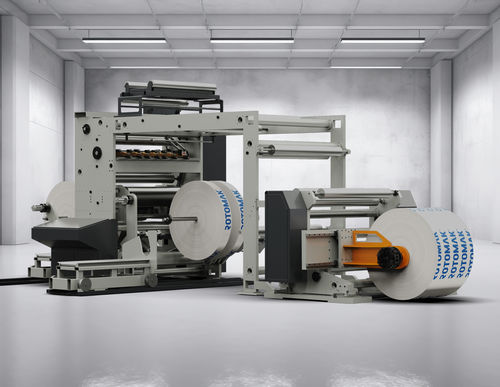

Compact slitter-rewinder RSR-IV

high-speedfor plastic filmsfor the paper industry

RSR-IV paper & laminates slitter rewinder
The RSR-IV is a compact slitter rewinder optimized for paper, laminates and flexible packaging films. It provides high-speed precision slitting and wide unwinding capacity to increase throughput in post-printing and lamination processes. The machine integrates an unwinder and transfer unit designed for industrial printing and converting lines.

Technical Features

• Unwinder diameter: 1500 mm
• Unwinder width: 1300–1600 mm
• Rewinder diameter: 1200 mm
• Mechanical speed: 600 m/min

We Manufacture According to Your Needs, Not Standard Limits.
Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references).Designed for small and medium core/roll diameters. Verify the required rewinder diameter for your production (600 mm specified in the technical features; 450 mm appears in alternate references). Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.We Manufacture According to Your Needs, Not Standard Limits.
Machine dimensions, working width, capacity, and technical equipment options can be customized to meet your production processes and specific requirements. In every project, we develop solutions focused on maximizing efficiency and ensuring customer satisfaction.
For more information and to determine the most suitable solution for your needs, please feel free to contact us.

Additional key points

• Compact slitter with integrated unwinder and transfer unit (800 mm transfer)
• Shaftless unwinding station for fast reel changes and improved material handling
• Push-off bar for finished reels and laser-beam automatic alignment positioning system
• Rewind shaft design supports 3" and 6" core winding without shaft change; 1" and 3" core configuration available for HSF film packaging
• User-friendly software interface for rapid operator training
• Remote monitoring and settings transfer to a PC or mobile device; Industry 4.0 compatible data management
• Cutter control programmed to allow energy recovery up to 50%

Applications

• Paper
• Laminates
• Flexible packaging

Specifications

• Unwinder Diameter: 1500 mm
• Unwinder Width: 1300–1600 mm
• Rewinder Diameter: 1200 mm
• Rewinding Type: Friction ring
• Speed: 600 m/min
