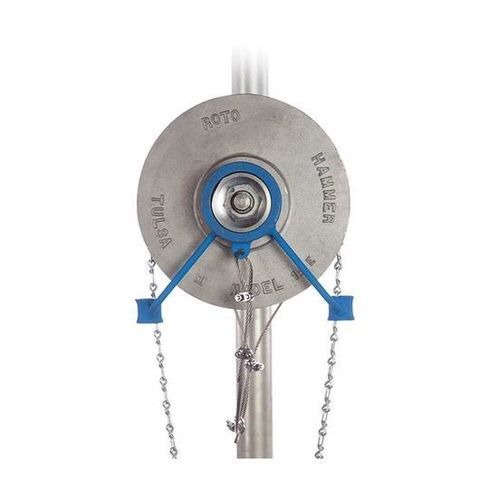

Manual valve actuator E

90°with piston rodaluminum

Product overview
Direct-fit chainwheels designed to mount onto the valve stem to replace the hand wheel. The direct-mount design simplifies installation by removing the need for multiple clamps and separate hardware sets. Available in lightweight aluminium and ductile iron, with an optional galvanised finish.

Features

• Supplied complete with sprocket wheel, chain guide, set collar and installation instructions
• Aluminium version replaces handwheel sizes 102–768 mm (4–30 1/4")
• Ductile iron version replaces handwheel sizes 216–768 mm (8 1/2–30 1/4")
• Galvanised finish option available

Materials and design

• Aluminium construction for reduced weight
• Ductile iron construction for higher strength
• Direct-mount interface to valve stem eliminates multiple clamps and extra hardware

Technical specifications

• Includes sprocket wheel, chain guide, set collar and installation instructions
• Aluminium replacement handwheel size range: 102–768 mm (4–30 1/4")
• Ductile iron replacement handwheel size range: 216–768 mm (8 1/2–30 1/4")
• Galvanised finish option available
• Mounting: direct mount onto valve stem to replace hand wheel
