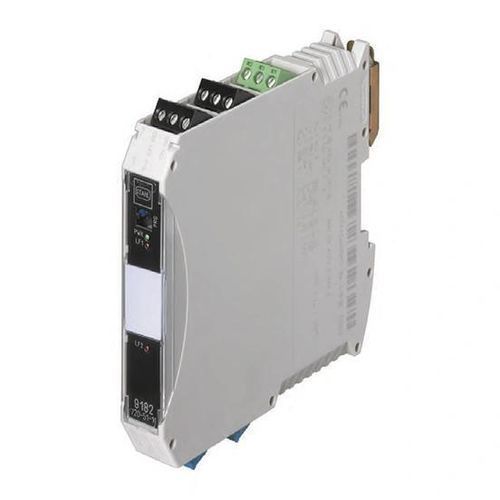

Intrinsically safe electrical safety barrier EXL-IM-9182

for hazardous areasfor temperature sensorsfor DIN rail

Overview
Intrinsic-safety (Ex-i) interface module to convert passive sensor signals (e.g. PT100) into active current or voltage outputs for installation in the safe area. The EXL-IM-9182 contains an intrinsically safe input circuit: the sensor is installed in the hazardous area while the module is mounted in the safe area.

Key features

• Designation: EXL-IM-9182-10-51-11s C2305 TMU
• 24 V DC power supply
• Reverse-polarity protection
• Transmitter for passive, potential-free analog sensors (ExSens series), 2-/3-/4-wire connection
• Configurable via software or DIP switches
• Input types: PT100, PT500, PT1000, Ni100, Ni500, Ni1000, 0…1.000 Ohm
• Output: 4…20 mA (additional plug for 0…10 V)
• LED operation indication
• Dimensions (W × H × D): 17,6 × 99 × 114,5 mm
• DIN-rail mounting; module to be installed in safe area
• Delivery: 1 Ex-i module for DIN-rail mounting
• Optional accessory: analog sensors type ExSens

Technical specifications

• Supply: 24 V DC
• Reverse-polarity protection: Yes
• Input types: PT100, PT500, PT1000, Ni100, Ni500, Ni1000, 0…1.000 Ohm (passive, potential-free analog sensors; ExSens series; 2-/3-/4-wire)
• Output: 4…20 mA (additional plug for 0…10 V)
• Configuration: Software or DIP-switches
• Operation indication: LED
• Dimensions (W × H × D): 17,6 × 99 × 114,5 mm
• Mounting: DIN rail (installation in safe area)
• Delivery contents: 1 Ex-i module for DIN-rail mounting
• Optional accessory: analog sensors type ExSens
