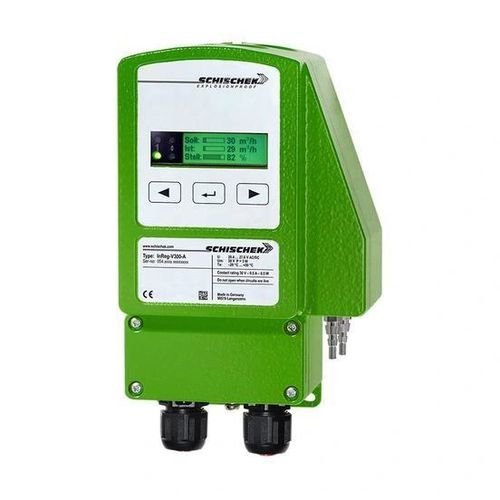

Volumetric flow regulator InReg-V

closed-loopfor aircompact

Product overview
Volume air flow controller for safe-area use to control constant and variable air volumes (CAV/VAV) in industrial HVAC systems. Configurable on site without special wiring or safety barriers. Aluminium housing with integrated terminal box and IP66 protection.

Features

• On-site configuration in safe area
• Integral PID control loop
• No safety barriers or intrinsically safe wiring required
• Optional stainless steel or offshore/marine coating
• Programmable without additional tools
• Adjustable k-factor for calibration
• Air volume monitoring and alarm with delay
• LCD with switchable backlight
• Compact dimensions: H×W×D = 180 × 107 × 66 mm

Applications
Control of air flows (CAV/VAV) in industrial ventilation and HVAC installations where on-site programmability and robust enclosure are required.

Technical specifications

• Measurement range: 0…100 / 300 / 1,000 Pa
• Switch-on delay: 3 seconds
• Control: Integral PID loop
• Adjustable parameter: k-factor
• Functions: Air volume monitoring; alarm with delay
• Display: LCD backlight (switchable)
• Housing: Aluminium, protection class IP66
• Enclosure: Integrated terminal box
• Dimensions (H×W×D): 180 × 107 × 66 mm
• Material/finish options: Stainless steel optional; offshore/marine coating available
• Installation/wiring: Configurable on site in safe area; no intrinsically safe wiring or safety barriers required; no additional panel module required
• Programmability: Programmable without additional tools
