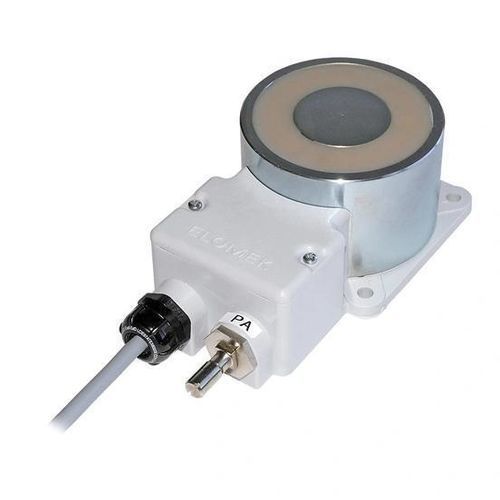

Magnetic door holder ExMag

Product description
ExMag door holder magnets are electric magnets designed to hold doors open or closed while supply voltage is present. They are suitable for industrial and marine door retention and for container locking where explosion-proof certification is required.

Features

• Also suitable for container locking applications
• Explosion-certified: ATEX for gases and dust, IECEx and DNV-GL
• Electric magnets, silicone-free construction
• Holding force varies by type (see ordering example)
• 24 VDC power supply
• 1 m cable, silicone- and halogen-free
• Ex-e terminal box required for electrical connection
• Maximum AC ripple must not exceed 20%
• Delivered as 1 magnet
• Ordering example: 650 N magnet + anchor + Ex-terminal box
• Typical order: 1 × EXM-650 + 1 GH 6 + 1 × EXC-K4/S

Technical specifications

• Application: door holder magnet to keep doors open or closed while supply voltage is available
• Series / range: ExMag
• Power supply: 24 VDC
• Cabling: 1 m cable, silicone- and halogen-free
• Construction: silicone-free electric magnet
• Explosion certification: ATEX for gases and dust; IECEx certified; DNV-GL certified
• Electrical requirements: Ex-e terminal box required; max AC ripple must not exceed 20%
• Force: dependent on type (e.g., 650 N as in ordering example)
• Packaging / delivery: supplied as 1 magnet
• Ordering examples: EXM-650 with GH 6 anchor and EXC-K4/S terminal box
