Hydraulic fitting B series
flangecarbon steelswivel

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
flange
Material
carbon steel
Other characteristics
swivel
Diameter

Max.: 250 mm
(9.843 in)

Min.: 15 mm
(0.591 in)

Operating pressure

Max.: 250 bar
(3,625.94 psi)

Min.: 0 bar
(0 psi)

Description

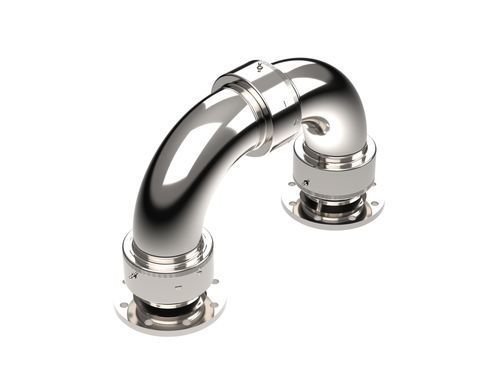

Swivel Joint for water, hydraulic oil and chemical fluids, with carbon steel material, flanged. Media Type Water + General Purpuse, Hydraulic Oil Max. Speed 20 RPM Max. Pressure 250 Bar Max. Temperature 120 °C Rotor Size 1/2" DN15 10" DN250 Single flow design, vertical rotation Carbon steel material Hardened inner sealing surface Special design sealing components Easy changable repair parts All flage types are aviable DIN, ANSI etc..
