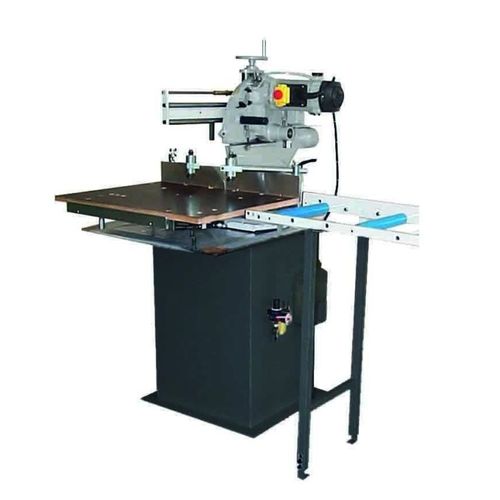

Crosscut saw ZS 85N

miterfor steelfor aluminum

Advantages • Double mitre cuts possible • Solid cast iron construction • Saw head pivoting up to 45° to both sides • Mitre adjustment up to approx. 45° from ZS 135 possible • Re-adjustable positive stops for 90° and 45° • Intermediate mitre setting by well reaable scales • Lower saw blade cover can be connectred to an extraction unit • more options Technical data Power (kW) : 2 - 3 Voltage (V) : 400 Cut length (mm) : 380 (90°) - 440 (90°) Cutting heigth (mm) : 85 (90°) - 200 (90°) Mitre range horizontal : 45°-90°-45° (ZS 85N) 45°-90°-25° (ZS 135, 170N) 45°-90°-20° (ZS 200N) Mitre range vertical : 90°-45° (left) 60°-90°-30° (ZS 200N) Saw blade (mm) : 300 (ZS 85N 350 (ZS135N) 420 (ZS 170N) 520 (ZS 200N) Connection piece for an extraction unit (mm) : 100 (ZS 135, 170, 200N 75 (ZS 85N) Machine dimension L x D x H (mm) : 900 x 1.400 x 1.600 (ZS 85N: 800 x 900 x 1.350) Weigth (kg) : approx. 75 / 100 / 120 / 310
