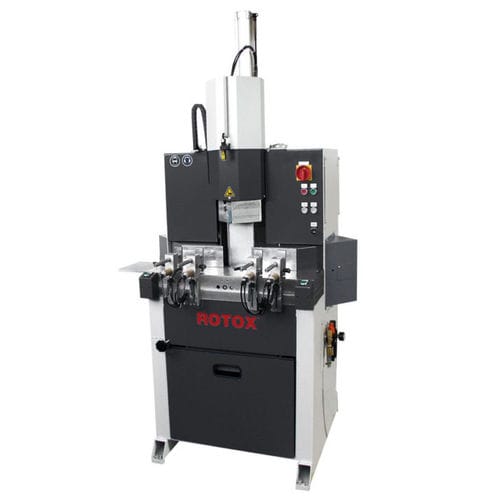

Semi-automatic punching press KLS 205hydraulicplatefor PVC profiles

semi-automatic punching press
semi-automatic punching press
Add to favorites
Compare this product
indicative price

Characteristics

Control
semi-automatic
Drive type
hydraulic
Product handled
plate, for PVC profiles
Associated function
cutting
Other characteristics
notching

Description

Stable construction and accurate cutting of VEE notches. Characteristic features: •Simultaneous cutting of 2 profiles •Large and stable profile support surface and integrated vertical clamping plate guarantee an optimal clamping during the cutting •Oddments fall directly downward into the cuttings container •Cuttings container included in delivery •Saw blades parallel to the cutting depth stops which can be adjusted by scale Optional extras: •Central adjustment of the stops for the cutting depth •Length measuring device •Additional horizontal profile clamp •Extension of clamping height to 180mm •Laser display for vertical welding seams Technical data: • Power (kW): 2 x 1,1 • Voltage (V): 400 • Air pressure (bar): 7 • Air consumption (l/min): approx. 60 • Saw blade diameter (mm): 300 • Number of revolutions (rpm): 2800 • Profi le height (mm): max. 140 • Cutting depth (mm): 75 • Transom width (mm): max. 150 • Weight (kg): approx. 350 • Machine dimensions L x D x H (mm): 1.000 x 800 x 2.100 • Workable material: uPVC profi le

Catalogs

No catalogs are available for this product.

See all of ROTOX GmbH‘s catalogs
