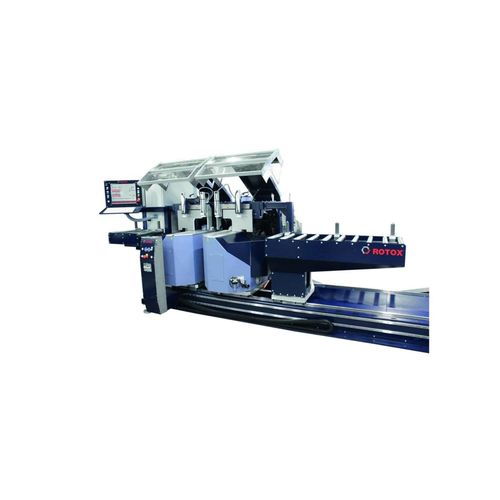

PVC double-miter saw ZGS 317

for aluminum

Advantages • Hydopneumatic saw blade feed • Fixed left saw unit • Motor-driven right saw unit • Measurement via magnetic tape • Servo-motor turning of the saw heads from 22,5° (67,5° inside) to 135° (45° outside) • Servo-motor swevelling of the saw below the supports 0° to 45° (swivelling inwards) • Extraction socket • Pneumatic vertical profile clamping • Spaying device • Moveable profile support (folding down) • more options Technical data Power saw motors (kW) : 2 x 3 Voltage (V) : 230/400 Air pressure (bar) : 7 Air consumption (l/min) : approx. 50 Saw blade (mm) : 600 Saw blade speed (rpm) : 2.710 Cutting length (mm) : min. 365 - max. 4.500, 6.000 and 7.000 Machine dimension L x D x H (mm) : 8.200 (7.200 without mov. roller conveyor) x 2.000 x 2.200 Weight (kg) : approx. 3.000
