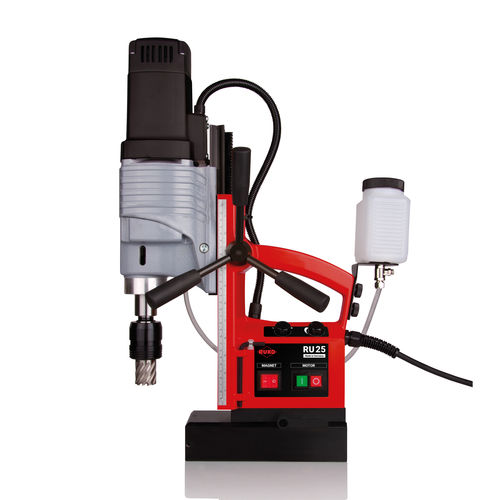

Magnetic drill RU25

electrictwo-speed

The RU25 magnetic pillar drilling machine has a powerful motor with 1,200 watts, speed regulator, 2-speed gearbox and clockwise/anticlockwise rotation. The magnet of the RU25 has an adhesive force of 16,000 N, which ensures reliable attachment of the machine to metallic surfaces during the drilling process. The drive unit of the RU25 is height-adjustable and has a double dovetail guide, which ensures high stability and precision. The right-hand / left-hand rotation, the 2-speed gearbox as well as the precise adjustment of the speed allow a high flexibility in adapting to different drilling tasks. In addition, the machine offers better handling due to its small size and low weight (16.0 kg). This magnetic drilling machine is ideal for use in workshops, factories, metal construction companies and other industries where high-quality drilling in metal is required. 16.000 N holding force, 2-speed gearbox, speed control, right/left rotation Nominal thread size max. M 20 Nominal thread size min. M 3 Stroke 170.0 mm Net weight 16,000 g Magnet length 238.0 mm Magnet width 92.0 mm Height 529 mm Cutting depth 55.0 mm Contact area 238,0 x 92,0 mm Magnetic holding force 16,000 N Technical data Certification VDE CEE Drill chuck Ø 1.0 - 16.0 mm Admission Morse taper MT 2 Supply voltage 220 - 240 Volts
