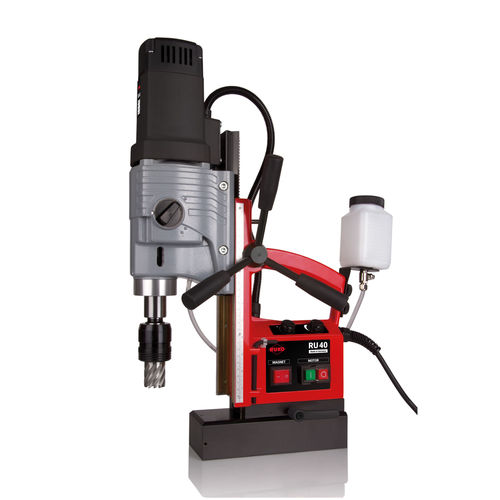

Magnetic drill RU40

electricpowerfulfour-speed

The magnetic drilling machine RU40 is a powerful machine with 1,800 watts, speed control, 4-speed gearbox and right/left rotation. The machine has a standard fine adjustment mechanism, which is damped and allows for a displacement of +/- 10.0 mm. The swivel range is +/- 30°, which allows for a high degree of flexibility when positioning the machine, enabling precise and efficient work. The magnet with 20,000 N holding force and large contact surface ensures secure fastening of the machine and high stability during operation. An intelligent coolant supply is also integrated into the magnetic drill. The coolant bottle ensures reliable and effective cooling during the drilling process. This magnetic drilling machine is ideal for metal construction companies, industrial companies and other professionals who need more power and depend on high-quality drilling. 20.000 N holding force, additional adjustment, 4-speed gearbox, speed controller, right/left rotation Nominal thread size max. M 30 Nominal thread size min. M 3 Stroke 190.0 mm Net weight 22,000 g Magnet length 238 mm Magnet width 92.0 mm Height 642.0 mm Cutting depth 110.0 mm Contact area 238,0 x 92,0 mm Magnetic holding force 20,000 N Technical data Certification VDE CEE Admission Morse taper MT 3 Supply voltage 220 - 240 Volts
