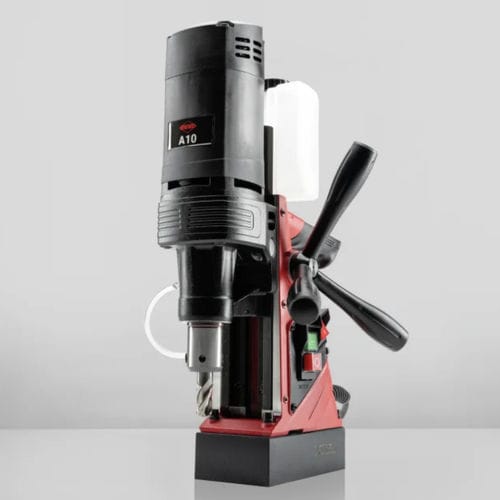

Magnetic drill A10

electric

The A10 magnetic drilling machine is a lightweight and easy-to-use machine that nevertheless offers high performance with 1,100 watts. With a holding force of 10,000 N, the magnet offers reliable fastening of the machine during the drilling process. The drive unit of the A10 is height-adjustable and has a double dovetail guide, which ensures high stability and precision. Thanks to the machine's light weight of only 10.5 kg and 50% magnetic force reduction, it is easy to handle and perfect for use in a wide variety of locations. It also has an automatic coolant supply that ensures reliable and effective cooling during the drilling process. It is the ideal tool for metalworking shops, engineering companies and other professionals who want to drill precise holes in metal. Easy readjustment thanks to 50% reduction in magnetic power when the motor is switched off / Height-adjustable power unit thanks to double dovetail guide / Very light / easy to use / 10.000 N clamping force / Automatic coolant supply Stroke 190 mm Net weight 10,500 g Magnet length 160 mm Magnet width 80.0 mm Height 580 mm Cutting depth 50.0 mm Contact area 160,0 x 80,0 mm Magnetic holding force 10,000 N Technical data Certification VDE CEE Admission Weldon shank 19,0 mm (3/4"9 Supply voltage 220 - 240 Volts
