Audio/video electrical cable SABIX® R flex Data IQ DVI Dual-Link

datalow-smokeoil-resistant

Product
SABIX® R flex Data IQ DVI Dual-Link — digital signal and data cable for rail vehicles designed for high-resolution video transmission and high data rate differential signals.

Application
The SABIX® R flex Data IQ DVI Dual-Link is a digital signal and data cable specially developed for railway technology for high-resolution video transmission in rail vehicles. Designed for applications with high data rates such as passenger information systems, display solutions in trains, video surveillance, or infotainment systems, it enables stable transmission of differential high-speed signals. The cable meets fire protection requirements R15 (EL1A) and R16 (EL1B) according to EN 45545-2 for hazard levels HL1 and HL2. A defined characteristic impedance of 100 Ω ± 10%, effective overall shielding made of aluminum foil and tinned copper braid, and halogen-free SABIX® material technology ensure reliable signal transmission under demanding electromagnetic and mechanical operating conditions.

Outstanding features

• halogen-free
• no flame propagation
• flame retardant and self-extinguishing
• flame retardant acc. to UN/ECE R118
• fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-2
• low smoke emission
• toxicity tested
• low corrosion
• oil and fuel resistant
• flexible for tight installation spaces
• resistant to mechanical stress
• excellent transmission characteristics
• PFAS-free

Construction

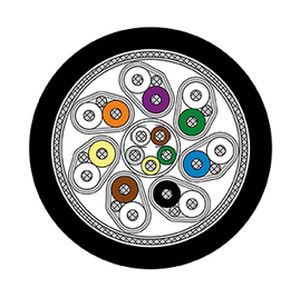

Dimension: 7 x (2 x 28 AWG)ST + 5 x 28 AWG
Conductor: tinned copper strands, fine wires
Insulation: Special SABIX®
Colour code: acc. to drawing
Stranding: acc. to drawing
Screen: Alu-foil and tinned copper braiding
Sheath material: Special SABIX®
Sheath colour: black (similar RAL 9005)

Technical data
Item number: 6650-0001
Peak operating voltage: max. 90 V
Voltage (UL): 300 V
Testing voltage: core/core: 2000 V; core/screen: 2000 V
Min. bending radius: fixed laying: 4 x d; flexible application: 12 x d
Temperature range: UL: up to +75 °C; fixed laying: -50/+90 °C; flexible application: -40/+90 °C
Halogen-free: acc. to EN 50306-1 + EN 50264-1. Development of HCl ≤ 0.5% acc. to IEC 60754-1. pH-value ≥ 4.3 acc. to IEC 60754-2. Conductivity ≤ 10.0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0.1% acc. to IEC 60684-2
Fire performance: no flame propagation acc. to IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2; flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2; flame retardant acc. to ISO 6722 (UN/ECE R118)
Smoke density: acc. to IEC 61034 + VDE 0482-1034
Toxicity: acc. to EN 50305 + VDE 0260-305
Oil- and fuel resistance: acc. to EN 50264-1 + VDE 0260-264-1
Characteristic impedance: 100 Ω ± 10 Ω
Flexibility: good
Weather resistance: good
Application: appropriate for DVI Dual-Link applications
Absence of harmful substances: acc. to RoHS directive of the European Union

Dimensions (example article)
Item no.: L66500001
Dimension: 7 x (2 x 28 AWG)ST + 5 x 28 AWG
Outer-ø: approx. 8.6 mm / max. 8.9 mm
Copper figure: 49.7 kg/km
Cable weight ≈: 98 kg/km
Note: Other dimensions and colours are possible on request.

Marking example
Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® R flex Data IQ 7x(2x28AWG)ST+5x28AWG DVI Dual-Link L6650-0001 UL AWM Style 21080 75°C 300V CE

Characteristics / technical specifications

• Designed for rail vehicles and compliant with EN 45545-2 (R15 EL1A, R16 EL1B) for HL1 and HL2
• Characteristic impedance: 100 Ω ± 10 Ω suitable for differential high-speed signals
• Overall shielding: aluminum foil + tinned copper braid for EMI protection
• Halogen-free SABIX® insulation and sheath with low HCl, low conductivity and defined pH
• Temperature ranges: fixed: -50/+90 °C; flexible: -40/+90 °C; UL rating up to +75 °C
• Electrical testing voltage core/core and core/screen: 2000 V
• Mechanical: good flexibility, resistant to mechanical stress, suitable for tight installation
• Chemical resistance: oil- and fuel-resistant
• Smoke and toxicity: low smoke emission and toxicity tested acc. to relevant standards
• Typical outer diameter: approx. 8.6 mm (max 8.9 mm); typical cable weight ≈ 98 kg/km
