Audio/video electrical cable SABIX® R flex Data IQ

datalow-smokewith copper screen

Application
The SABIX® R flex Data IQ HDMI / DVI / DisplayPort is a digital data cable specially developed for railway technology for high-resolution video and multimedia interfaces in rail vehicles. It enables reliable transmission of differential high-speed signals and is suitable for passenger information systems, display solutions, video surveillance and infotainment systems in trains. The cable meets fire protection requirements R15 (EL1A) and R16 (EL1B) according to EN 45545-2 for hazard levels HL1 and HL2. A defined characteristic impedance of 100 Ω ± 10%, effective overall shielding consisting of aluminium foil and tinned copper braid, and a robust halogen-free construction ensure stable signal transmission under demanding electromagnetic and mechanical operating conditions.

Outstanding features

• halogen-free
• no flame propagation
• flame retardant and self-extinguishing
• flame retardant acc. to UN/ECE R118
• fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-2
• low smoke emission
• toxicity tested
• low corrosion
• oil and fuel resistant
• flexible for tight installation spaces
• resistant to mechanical stress
• excellent transmission characteristics
• PFAS-free

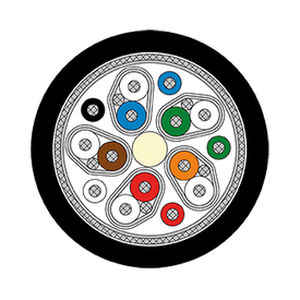

Construction
Dimension: 5 x (2 x 28 AWG)ST + 5 x 28 AWG
Conductor: tinned copper strands, fine wires
Insulation: special SABIX®
Colour code: according to drawing
Stranding: according to drawing
Screen: aluminium foil and tinned copper braiding
Sheath material: special SABIX®
Sheath colour: black (similar RAL 9005)

Technical data
Item number: 6650-0002
Peak operating voltage: max. 90 V
Voltage (UL): 300 V
Testing voltage: core/core: 2000 V; core/screen: 2000 V
Min. bending radius: fixed laying: 4 x d; flexible application: 12 x d
Temperature range: UL: up to +75 °C; fixed laying: -50 / +90 °C; flexible application: -40 / +90 °C
Halogen-free: acc. to EN 50306-1 + EN 50264-1; HCl development ≤ 0.5% acc. to IEC 60754-1; pH ≥ 4.3 acc. to IEC 60754-2; conductivity ≤ 10.0 µS/mm acc. to IEC 60754-2; fluorine content ≤ 0.1% acc. to IEC 60684-2
Fire performance: no flame propagation acc. to IEC 60332-3-25 and EN 50305; flame retardant and self-extinguishing acc. to IEC 60332-1-2; flame retardant acc. to ISO 6722 (UN/ECE R118)
Smoke density: acc. to IEC 61034
Toxicity: acc. to EN 50305
Oil and fuel resistance: acc. to EN 50264-1
Characteristic impedance: 100 Ω ± 10 Ω
Flexibility: good
Weather resistance: good
Application: appropriate for HDMI, DVI and DisplayPort applications
Absence of harmful substances: acc. to RoHS directive of the European Union

Characteristics / Technical specifications

• Commercial model name: SABIX® R flex Data IQ
• Full product title: SABIX® R flex Data IQ HDMI/DVI/DisplayPort
• Item number: 6650-0002
• Dimension: 5 x (2 x 28 AWG)ST + 5 x 28 AWG
• Outer-ø (typical/max): approx. 7.8 mm / max. 8.0 mm
• Copper figure (≈): 40.8 kg/km
• Cable weight (≈): 82 kg/km
• Characteristic impedance: 100 Ω ± 10 Ω
• Temperature range (flexible): -40 °C to +90 °C
• Min. bending radius (flexible): 12 x d
• Shielding: aluminium foil + tinned copper braid
• Sheath: special SABIX® (black)
• Standards / Approvals: EN 45545-2 (R15/R16 HL1-2), UN/ECE R118, UL, CE, RoHS
