Electrical data cable SABIX® R flex Data IQ

USB 3.0low-smokewith copper screen

Product overview
The SABIX® R flex Data IQ USB 3.0 (USB 3.2 Gen 1x1) is a halogen-free, high-performance USB 3.0 data cable developed for rail and vehicle on-board networks. It provides defined characteristic impedance of 90 Ω ± 10% and full shielding to ensure stable high-speed data transmission in electromagnetically demanding environments. Suitable for infotainment, diagnostic and maintenance interfaces and in-vehicle communication systems. The halogen-free construction reduces smoke and corrosive gases and meets fire protection requirements R15 (EL1A) and R16 (EL1B) according to EN 45545-2 for hazard levels HL1 and HL2.

Outstanding features

• halogen-free
• no flame propagation
• flame retardant and self-extinguishing
• flame retardant acc. to UN/ECE R118
• fulfils EN 45545-2 R15 (EL1A) and R16 (EL1B) for HL1-2
• low smoke emission
• toxicity tested
• low corrosion
• oil and fuel resistant
• flexible for tight installation spaces
• resistant to mechanical stress
• excellent transmission characteristics
• PFAS-free

Construction
Dimension: 3 x (2 x 30 AWG)ST + 2 x 28 AWG
Conductor: tinned copper strands, fine wires
Insulation: Special SABIX®

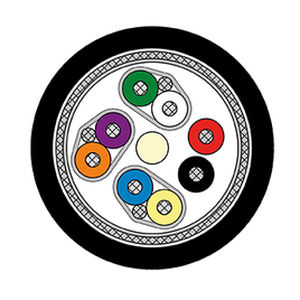

Colour code: acc. to drawing
Stranding: acc. to drawing
Screen: alu foil and tinned copper braiding
Sheath material: Special SABIX®
Sheath colour: black (similar RAL 9005)

Technical data
Item number: 6650-0003
Peak operating voltage: max. 90 V
Voltage UL: 300 V
Testing voltage: core/core: 2000 V; core/screen: 2000 V
Min. bending radius: fixed laying: 4 x d; flexible application: 12 x d
Temperature range: UL: up to +75 °C; fixed laying: -50/+90 °C; flexible application: -40/+90 °C
Halogen-free: according to EN 50306-1 + EN 50264-1. HCl ≤ 0.5% acc. to IEC 60754-1. pH ≥ 4.3 and conductivity ≤ 10.0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0.1% acc. to IEC 60684-2
Fire performance: no flame propagation acc. to IEC 60332-3-25 and EN 50305; flame retardant and self-extinguishing acc. to IEC 60332-1-2; flame retardant acc. to ISO 6722 (UN/ECE R118)
Smoke density: acc. to IEC 61034
Toxicity: acc. to EN 50305
Oil and fuel resistance: acc. to EN 50264-1
Characteristic impedance: 90 Ω ± 10 Ω
Flexibility: good
Weather resistance: good
Application: appropriate for USB 3.0 applications
Absence of harmful substances: acc. to RoHS directive of the European Union

Dimensions (example article)
Item no.: L66500003 — Dimension: 3 x (2 x 30 AWG)ST + 2 x 28 AWG — Outer-ø: approx. 5.2 mm / max. 5.6 mm — Copper figure: 22.5 kg/km — Cable weight: ≈ 39 kg/km

Characteristics / specifications

• Model / Series: SABIX® R flex Data IQ
• Item number (example): 6650-0003
• Dimension: 3 x (2 x 30 AWG)ST + 2 x 28 AWG
• Conductor: tinned copper strands, fine wires
• Insulation / Sheath: Special SABIX®
• Screen: alu foil + tinned copper braiding
• Characteristic impedance: 90 Ω ± 10 Ω
• Peak operating voltage: max. 90 V (UL voltage 300 V)
• Testing voltage: 2000 V (core/core and core/screen)
• Min. bending radius: fixed 4 x d, flex 12 x d
• Temperature range: UL up to +75 °C; fixed -50/+90 °C; flexible -40/+90 °C
• Fire & smoke: EN 45545-2 (R15 EL1A / R16 EL1B HL1-2), IEC 60332, IEC 61034
• Halogen-free and low corrosivity: IEC 60754-1 / IEC 60754-2
• Oil & fuel resistant, weather resistant, good flexibility
• PFAS-free, RoHS compliant
