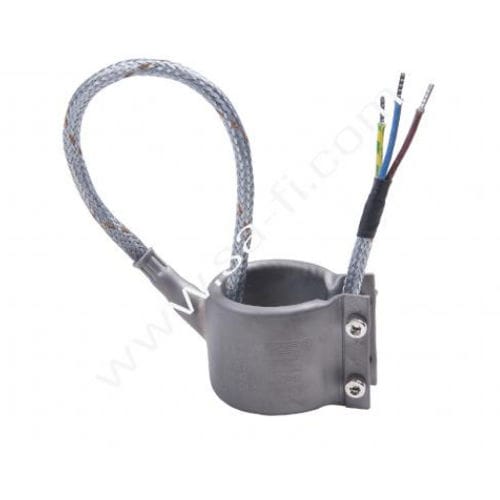

Electric band heater CH-500insulated
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Protection level
- insulated
Description
Mineral Insulated Nozzle HeaterCH-500Nozzle Heaters
Used in heating of nozzles on injection molding machines, heating of pipe lines and various aplications.
It is long durability and easy to install. It is fully sealed housing against plastic leakage.
Available with different cable lengths and lead exits.
Technical Specification -
Diameter : - Min. Ø30mm - Max Ø100mm
Length: - Min 22mm- Max 60mm
Voltage: - 230/400 V
Wattage: - Max. 6-9 W/cm²
Working Temperature: - 400 °C
Housing Material: - Stainless Steel
Insulation Material: - 800-1000 °C Mikanite plate
Resistance Winding Wire: - 80/20 NiCr 1200°C
Energy Input : - Ni GLS cable resistant to 400 °C
Thermocouple Options: - J Type (Fe-Const), K Type (NiCr-Ni)
