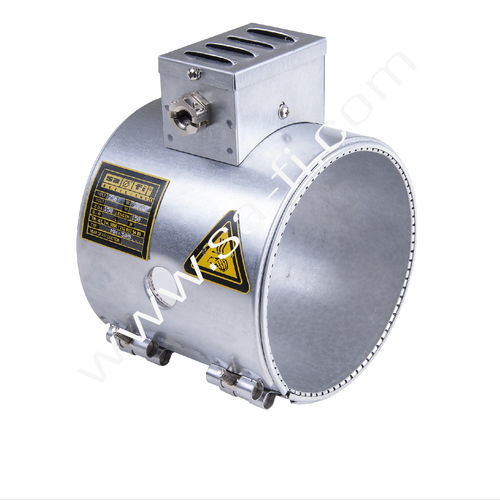

Electric band heater MH-305

insulatedmica

Energy Saving Mica Insulated Band Heater Mica Insulated Heaters It is designed as high efficiency and long life band heater for processing and making of plastic raw materials, extruder machines, in textile and packaging industries. This heater cannot be tested idle. In order to operate, it must be installed in such a way that heat transfer is ensured. These band heaters are mainly used in machines with protection guards and in output molds. It is produced according customer's demand. Technical Specification - Diameter : - Min. Ø80mm Length: - Min 50mm Voltage: - 230/400 V Wattage : - Max. 3,5 W/cm² Wall Thickness: - 7mm Working Temperature: - 300 °C Housing Material: - Stainless Steel or Aluminised Sheet Insulation Material: - 3mm fiber glass material Resistance Winding Wire: - 60/15 NiCr 1200°C Energy Connection : - Ni GLS Cable Resistant to 400ºC or plug sockets
