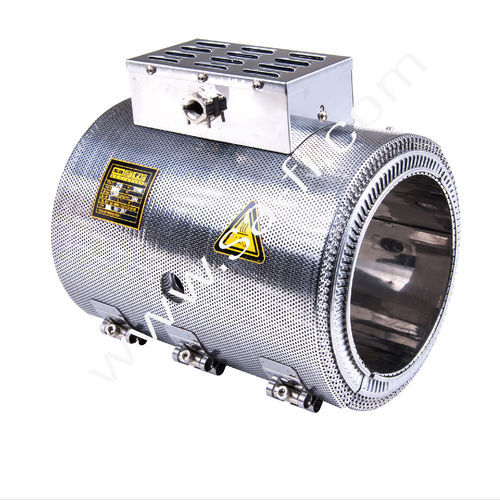

Electric band heater MH-307

insulatedmica

Energy Saving Mica Insulated Band Heater with Two Layers Mica Insulated Heaters It is designed as high efficiency and long life band heater for processing and making of plastic raw materials, extruder machines, in textile and packaging industries. This product has a safety cabinet to prevent contact burns. This heater cannot be tested idle. In order to operate, it must be installed in such a way that heat transfer is ensured. It is produced according customer's demand. Technical Specification - Diameter : - Min. Ø100mm Length: - Min 60mm Voltage: - 230/400 V Wattage : - Max. 3,5 W/cm² Wall Thickness: - 32mm Working Temperature: - 300 °C Housing Material: - Stainless Steel or Aluminised Sheet Insulation Material: - 15mm fiber glass material Resistance Winding Wire: - 60/15 NiCr 1200°C Energy Connection : - Ni GLS Cable Resistant to 400ºC or plug sockets
