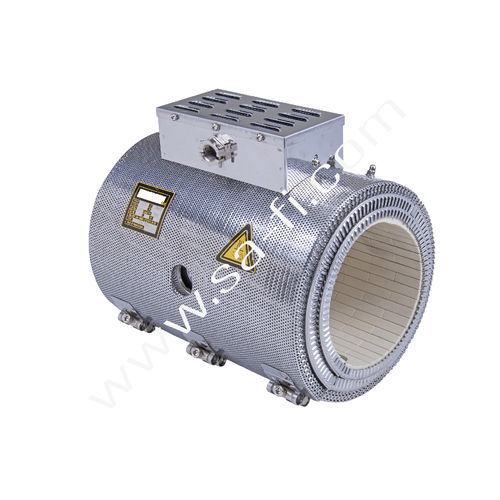

Electric band heater CH-403

insulatedceramic

Energy Saving Ceramic Insulated Band Heater With Two Layers They are long life band heaters designed for processing and making all kinds of plastic raw materials, extruder machines and in many fields of plastic industry. These ceramic insulated band heaters can be tested and run at idle. They must be mounted in such a way that heat transfer is ensured. Thanks to the direct contact of ceramic surfaces that has high thermal conductivity, The efficiency and performance of your machine increases. This product has a safety cabinet to prevent contact burns. It is produced according customer's demand. Technical Specification - Diameter : - Min. Ø80mm - Max. Ø300mm. Length: - Min 60mm - Max. 500mm. Voltage: - 230/400 V Wattage : - Max. 6,5 W/cm² Wall Thickness: - 37mm Working Temperature: - 550 °C Housing Material: - Stainless Steel or Aluminised sheet Insulation Material: - Max.1200 °C Steatit Insulation Material: - 6mm GL5 fiber Resistance Winding Wire: - 80/20 NiCr 1200°C Energy Connection : - Ni GLS Cable Resistant to 400ºC , plugs or connection boxes
