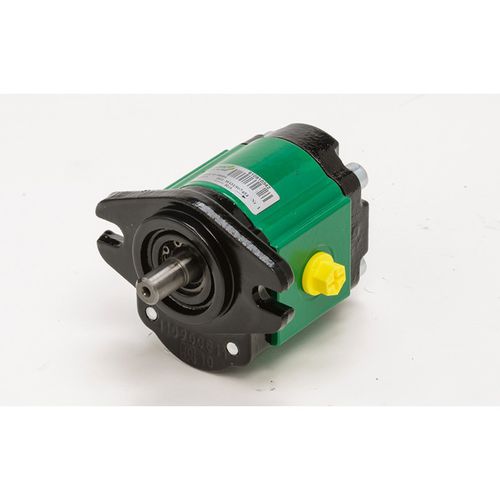

Hydraulic gear pump 1.5PE seriesaluminumcast ironflange
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- aluminum, cast iron
- Other characteristics
- flange
- Pressure
250 bar
(3,626 psi)- Flow rate
Max.: 22 l/min
(5.81 us gal/min)Min.: 0 l/min
(0 us gal/min)- Speed
700 rpm, 5,000 rpm
(4,398 rad.min-1, 31,416 rad.min-1)- Weight
Max.: 1.66 kg
(3.66 lb)Min.: 1.25 kg
(2.76 lb)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Power
Max.: 11 kW
(14.96 hp)Min.: 0 kW
(0 hp)
Description
Gear pumps made with aluminium alloy body and cast iron flanges and rear covers.
Displacements from 0.09 to 0.67 cu.in/rev.
Integral gear with 12 teeth.
Available with flanges, shafts and ports for the main European and American standards.
