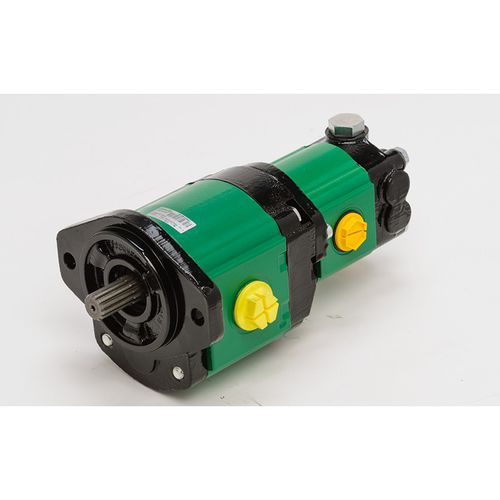

Hydraulic gear pump 3PE seriesaluminumcast ironcompact
Add to favorites
Compare this product
Characteristics
- Type
- gear
- Material
- aluminum, cast iron
- Other characteristics
- compact, flange
- Pressure
250 bar
(3,625.9 psi)- Flow rate
Min.: 0 l/min
(0 us gal/min)Max.: 180 l/min
(47.55 us gal/min)- Speed
600 rpm
(3,770 rad.min-1)- Weight
Min.: 8.8 kg
(19.4 lb)Max.: 11.5 kg
(25.35 lb)- Fluid temperature
Min.: -20 °C
(-4 °F)Max.: 80 °C
(176 °F)- Power
Min.: 0 kW
(0 hp)Max.: 80 kW
(108.77 hp)
Description
Displacements from 1.26 to 4.48 cu.in/rev.
Integral gear with 12 teeth.
Double shaft seal.
Available with flanges, shafts and ports for the main European and American standards.
Available supports with bearing.
Wide range of rear covers with built-in valves.
Catalogs
3.5PC_Technical Catalogue
26 Pages
