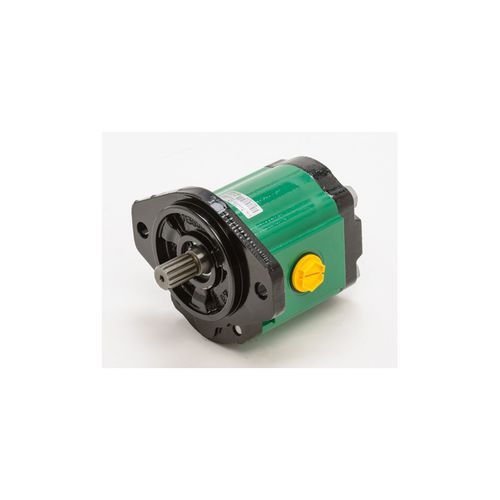

Gear hydraulic motor 2.5MB series aluminumcast iron
Add to favorites
Compare this product
Characteristics
- Technology
- gear
- Other characteristics
- cast iron, aluminum
- Pressure
280 bar
(4,061 psi)- Rotational speed
Min.: 600 rpm
(3,769.91 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 120 Nm
(88.51 ft.lb)- Displacement
16 cm³
(0.54 US fl oz)
Description
High volumetric efficiency achieved by floating bushings and axial compensation.
Integral gear with 12 teeth.
Double shaft seal.
Available with flanges, shafts and ports for the main European and American standards.
Available supports with bearing.
Catalogs
2.5MB_Technical Catalogue
24 Pages
