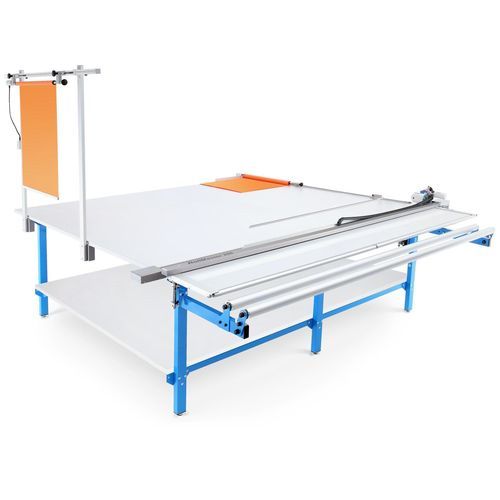

Fabric cutting table RollMaster Super

rotary-knifefor cutting roomsfor blinds

RollMaster Super is a cutting table for processing fabrics from the roll into formats. It’s widely used in roller blind and curtain production.

It cuts both natural and synthetic fabrics — including woven, non-woven, and knitted materials.

PRODUCT BENEFITS

• Automatic cutter cuts materials at up to 1 m/s
• Intuitive control panel with width settings and cut counter
• Pneumatic holding bar ensures firm fabric clamping via button or foot pedal
• Integrated scale strip provides a reliable reference for accurate alignment
• Safety system includes blade covers, a start lock, and emergency stop
• Modular design supports several configurations with extra add-ons

TECHNICAL DATA

• Table width: 2000–3200 mm (other on request)
• Table length: 2000–5000 mm (other on request)
• Table height: 870–900 mm, adjustable
• Cutting head: 108 mm circular blade
• Blade speed: 12000 rpm (optionally adjustable)
• Cutting speed: 1 m/s (optionally adjustable)
• Cutting height capacity: 5 mm
• Cutting precision: 1 mm
• Power: 200-600 W (depends on version)
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Fabric feeder – upper or bottom
• Measuring strip device
• Laser measuring device
• LED backlight of the table top
• Adjustable cutting speed
• Adjustable blade rotation speed
• Bottom shelves
• Roller blind winder
• Roller blind hoist
• Spare parts kit
