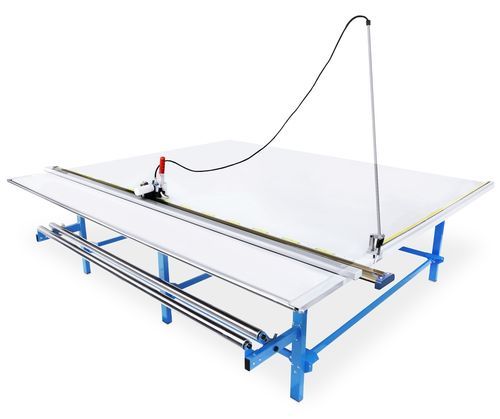

Fabric cutting table RollMaster Standard

rotary-knifecut-to-lengthfor cutting rooms

RollMaster Standard is the entry-level cutting table of the RollMaster series, designed for precise cutting of fabrics into formats.

It cuts both natural and synthetic fabrics — including woven, non-woven, and knitted materials.

PRODUCT BENEFITS

• High-rev speed manual cutter
• Cut counter with reset and correction buttons
• Pneumatic holding bar ensures firm fabric pressure via button or foot pedal
• Integrated scale strip provides a reliable reference for accurate alignment
• Modular design supports several configurations with extra add-ons

TECHNICAL DATA

• Table width: 2000–2700 mm (other on request)
• Table length: 2000–5000 mm (other on request)
• Table height: 87–900 mm, adjustable
• Cutting head: 108 mm circular blade
• Blade speed: 12000 rpm (optionally adjustable)
• Cutting height capacity: 5 mm
• Cutting precision: 1 mm
• Power: 130 W
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Fabric feeder – upper or bottom
• Measuring strip device
• Laser measuring device
• Adjustable blade rotation speed
• Bottom shelves
• Roller blind winder
• Roller blind hoist
• Spare parts kit
