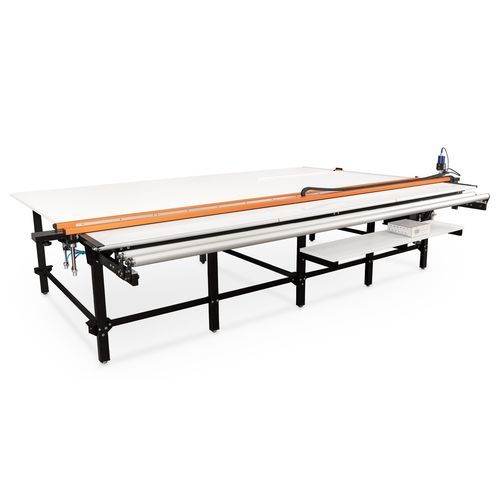

Fabric cutting table RollMaster PRO

rotary-knifecut-to-lengthfor blinds

RollMaster PRO is an advanced cutting system combining ultrasonic welding technology with a rotary blade for precise material cutting and sealed-edge finishing.

The PRO version is equipped with a 7-inch touch screen that provides easy access to various options and presets.

PRODUCT BENEFITS

• Ultrasonic knife welds synthetic fabrics during cutting to prevent edge fraying
• Rotary blade cuts natural fabrics (woven, non-woven and knitted)
• Quick switching between ultrasonic and rotary blade modes
• Dual pneumatic holding bar for secure material stabilisation
• 7-inch touch panel with control over cutting parameters
• Variable cutting speed, rotary knife blade speed adjustment
• 6 presets, 6 languages, cutting statistics
• Automated home-position verification before cutting cycle
• LED backlighting to help detect fabric defects

TECHNICAL SPECIFICATIONS

• Table width: 2700-3400 mm (other on request)
• Table length: 2000-5000 mm (other on request)
• Table height: 870–900 mm (adjustable)
• Dual pneumatic holding bar (button or foot pedal controlled)
• Fabric feeder: 3-position adjustable
• Cutting heads: ultrasonic and circular knife
• Cutting speed: up to 0.8 m/s (adjustable)
• Cutting precision: 1 mm
• Rotary cutter power: 150 W
• Rotary cutter blade speed: 2400 rpm (adjustable 1000-2400 rpm)
• Ultrasonic generator power: 1200 W
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Bottom shelves
• Roller blind winder
• Roller blind hoist
• Spare parts kit
