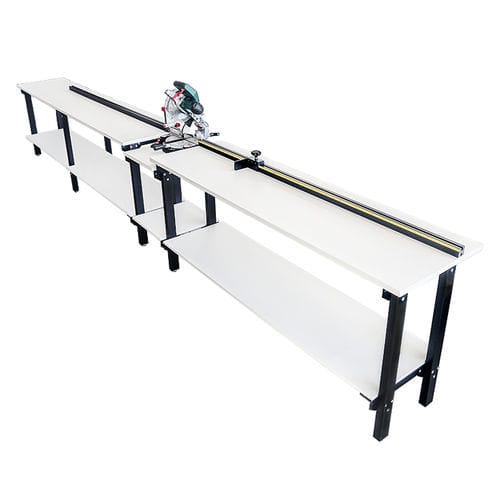

Aluminum pipe cutting tool

electric

The table for cutting aluminum or PVC tubes and profiles facilitates precise cutting using a manual gauge.

PRODUCT BENEFITS

• Customizable table sizes tailored precisely to your specific production requirements
• Centralized saw unit with multi-plane blade tilting allows for versatile and precise profile cutting
• Integrated manual gauge ensures high-accuracy repetitive cuts for aluminum and PVC materials
• Optional roller conveyor configuration facilitates effortless material handling and workflow efficiency

TECHNICAL DATA

• Table width: 500 mm (other on request)
• Feeding table length: 2500 mm (other on request)
• Receiving table length: 2000 mm (other on request)
• Table height: 870-900 mm (adjustable)
• Saw size: 216 x 30 mm
• Max. cutting width 90°/45°: 120 / 80 mm
• Max. cutting depth 90°/45°: 60 / 45 mm
• Cutting thickness 90°/90°: 120 x 60 mm
• Cutting thickness 45°/45°: 80 x 45 mm
• Power: 1100 W
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles
• Anodised aluminium rails
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Roller conveyor
• Castors
