Handling AGV Car -A
transporttransferlifting

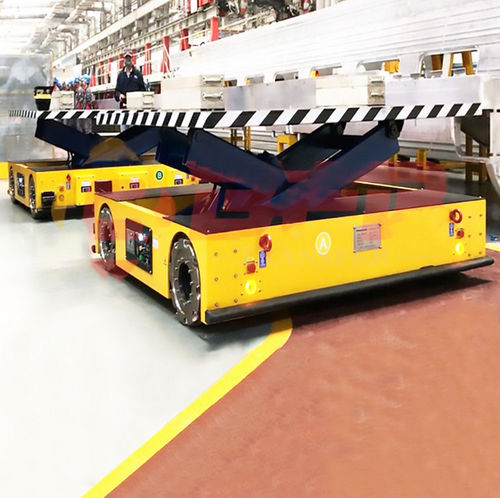

Handling AGV - Car -A - SANTSAI MACHINERY - transport / transfer / lifting
Handling AGV - Car -A - SANTSAI MACHINERY - transport / transfer / lifting
Handling AGV - Car -A - SANTSAI MACHINERY - transport / transfer / lifting - image - 2
Add to favorites
Compare this product
Go to the SANTSAI MACHINERY website for more information

Characteristics

Type
handling, transport, transfer, lifting
Application domain
for warehouse, for logistics, for the automobile industry, for assembly
Motor type
battery-powered
Specifications
compact, hydraulic

Description

Electric flat Car -A

  • Electric transfer cart designed for lifting, positioning and transporting loads in workshops, warehouses and industrial environments. Combines a compact flat deck with battery power and safety features for stable operation in material handling, assembly and die-handling applications.


Overview

  • Applications: suitable for lifting and transporting loads, order-picking, die handling and assembly operations; commonly used in automotive manufacturing, warehousing/logistics, paper mills and stereoscopic warehouses.
  • Ergonomics: deck height adjustment reduces manual bending and lifting to lower operator strain.


Key product statements

  • Surface treatment: shot blasting and stoving varnish providing anti-corrosion protection.
  • High-quality pump station for stable lift and descent in hand-hydraulic lift operation.
  • Complies with relevant standards such as CE.
  • Safety stops prevent unintended lowering during maintenance. Warning: do not move while under load; never use to lift people. Unauthorized maintenance or operation without training is prohibited.


Reliable & Stable

  • Overload valve design protects the system from damage due to misuse and reduces maintenance costs.
  • Each hydraulic cylinder includes an internal velocity fuse for additional safety.
  • Heavy-duty steel construction suitable for harsh industrial environments.
  • Two rigid front casters and two rear swivel casters with brakes increase maneuverability in confined spaces.


Features for transfer cart

  • Customizable dimensions and configurations to match site requirements and special functions.
  • Drive module engineered for minimal slip, light operation and strong turning performance.
  • In-situ rotation capability enables on-the-spot turning for narrow passages and limited-space applications.
  • Optional operation keys allow press-and-go control and automatic stop at stations without requiring specialized training.
  • Running speed is adjustable; typical configured speeds are 0–20 m/min depending on model, with certain configurations supporting higher speeds up to 1 m/s.


Product Parameters

  • Models and specifications:
    • BWP-2T — Table Size (m): 2.0×1.5×0.45; Power: Maintenance Free Battery; Wheel Base: 1080 mm; Wheel Diameter: 250 mm; Running Speed: 0-20 m/min; Motor Power: 2 × 1.2 kW; Battery Capacity: 250 Ah; Battery Voltage: 24 V; Max Wheel Load: 14.4 kN; Reference Weight: 2.3 t.
    • BWP-10T — Table Size (m): 2.3×2.0×0.55; Power: Maintenance Free Battery; Wheel Base: 1650 mm; Wheel Diameter: 350 mm; Running Speed: 0-20 m/min; Motor Power: 2 × 2.2 kW; Battery Capacity: 250 Ah; Battery Voltage: 48 V; Max Wheel Load: 42.6 kN; Reference Weight: 4.2 t.
    • BWP-30T — Table Size (m): 3.5×2.2×0.7; Power: Maintenance Free Battery; Wheel Base: 1650 mm; Wheel Diameter: 450 mm; Running Speed: 0-20 m/min; Motor Power: 2 × 5.5 kW; Battery Capacity: 450 Ah; Battery Voltage: 48 V; Max Wheel Load: 110.4 kN; Reference Weight: 6.8 t.
    • BWP-50T — Table Size (m): 5.5×2.6×0.8; Power: Maintenance Free Battery; Wheel Base: 2000 mm; Wheel Diameter: 600 mm; Running Speed: 0-20 m/min; Motor Power: 2 × 7.5 kW; Battery Capacity: 500 Ah; Battery Voltage: 48 V; Max Wheel Load: 174 kN; Reference Weight: 8 t.
    • BWP-80T — Table Size (m): 6.5×2.8×0.95; Power: Maintenance Free Battery; Wheel Base: 1950 mm; Wheel Diameter: 600 mm; Running Speed: 0-20 m/min; Motor Power: 30 kW; Battery Capacity: 800 Ah; Battery Voltage: 72 V; Max Wheel Load: 185 kN; Reference Weight: 14.6 t.
    • BWP-100T — Table Size (m): 6.6×3.0×1.2; Power: Maintenance Free Battery; Wheel Base: 2000 mm; Wheel Diameter: 600 mm; Running Speed: 0-20 m/min; Motor Power: 40 kW; Battery Capacity: 1000 Ah; Battery Voltage: 72 V; Max Wheel Load: 190 kN; Reference Weight: 26.8 t.


Note

  • All products are standard models; design and specifications are subject to change without prior notice.


Technical specifications

  • Brand: SANTSAI.
  • Product name: Electric flat Car -A.
  • Configuration options: multiple model variants (BWP-2T to BWP-100T) covering table sizes, motor powers and battery systems for different load capacities.
  • Power source: maintenance-free battery (voltages and capacities vary by model).
  • Primary applications: automotive, warehousing/logistics, papermaking, stereoscopic warehouses.
  • Safety features: overload valve, hydraulic velocity fuse, safety stops, brake-equipped rear swivel casters.
  • Surface finish: shot blasting and stoving varnish with anti-corrosion protection.
