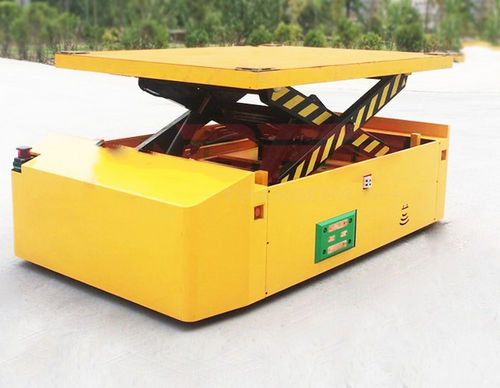

Handling AGV Car -B

transporttransferlifting

Electric transfer cart BWP Series is a battery-powered flat-deck transfer cart designed for lifting and transporting loads in automotive, warehousing, logistics and assembly operations. It reduces worker bending and manual handling while enabling precise positioning of heavy components.

Key features

• Surface treatment: shot blasting and stoving varnish for corrosion resistance.
• Stable lift/lower performance ensured by a high-quality pump station and an internal hydraulic velocity fuse on each cylinder.
• Overload valve to prevent damage from misuse and to reduce maintenance requirements.
• Heavy steel construction with two rigid front wheels and two rear swivel wheels (with brake) for maneuverability in workshop environments.
• In-situ rotation technology and a compact drive module enable tight turning radii for operation in confined aisles.
• Control keys mounted on the car body for simple operation (press-and-go with automatic station stop); speed adjustable up to 1 m/s (typical running speed 0–20 m/min depending on model).
• Safety stops to minimize the risk of an empty deck lowering during maintenance; warnings: do not move while under load and never use to lift people.

Applications

• Suited for automotive production lines, warehousing and logistics, papermaking facilities and multi-level (stereoscopic) warehouses to enable automated material transfers, reduce manual handling and improve operational efficiency.

Product parameters

• Models: BWP-2T, BWP-10T, BWP-30T, BWP-50T, BWP-80T, BWP-100T
• BWP-2T
  • Table size (m): 2.0 × 1.5 × 0.45
  • Power: Maintenance-free battery
  • Wheel base: 1080 mm
  • Wheel diameter: 250 mm
  • Running speed: 0–20 m/min
  • Motor power: 2 × 1.2 kW
  • Battery capacity: 250 Ah
  • Battery voltage: 24 V
  • Max wheel load: 14.4 kN
  • Reference weight: 2.3 t
• BWP-10T
  • Table size (m): 2.3 × 2.0 × 0.55
  • Power: Maintenance-free battery
  • Wheel base: 1650 mm
  • Wheel diameter: 350 mm
  • Running speed: 0–20 m/min
  • Motor power: 2 × 2.2 kW
  • Battery capacity: 250 Ah
  • Battery voltage: 48 V
  • Max wheel load: 42.6 kN
  • Reference weight: 4.2 t
• BWP-30T
  • Table size (m): 3.5 × 2.2 × 0.7
  • Power: Maintenance-free battery
  • Wheel base: 1650 mm
  • Wheel diameter: 450 mm
  • Running speed: 0–20 m/min
  • Motor power: 2 × 5.5 kW
  • Battery capacity: 450 Ah
  • Battery voltage: 48 V
  • Max wheel load: 110.4 kN
  • Reference weight: 6.8 t
• BWP-50T
  • Table size (m): 5.5 × 2.6 × 0.8
  • Power: Maintenance-free battery
  • Wheel base: 2000 mm
  • Wheel diameter: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 2 × 7.5 kW
  • Battery capacity: 500 Ah
  • Battery voltage: 48 V
  • Max wheel load: 174 kN
  • Reference weight: 8 t
• BWP-80T
  • Table size (m): 6.5 × 2.8 × 0.95
  • Power: Maintenance-free battery
  • Wheel base: 1950 mm
  • Wheel diameter: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 30 kW
  • Battery capacity: 800 Ah
  • Battery voltage: 72 V
  • Max wheel load: 185 kN
  • Reference weight: 14.6 t
• BWP-100T
  • Table size (m): 6.6 × 3.0 × 1.2
  • Power: Maintenance-free battery
  • Wheel base: 2000 mm
  • Wheel diameter: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 40 kW
  • Battery capacity: 1000 Ah
  • Battery voltage: 72 V
  • Max wheel load: 190 kN
  • Reference weight: 26.8 t

Technical specifications

• Drive/power: Maintenance-free battery systems across models (voltages and capacities vary by model as listed above).
• Adjustable running speed; typical operation 0–20 m/min, up to 1 m/s depending on configuration.
• Hydraulic safety design including overload valves, internal hydraulic velocity fuses and safety stops.
• Dimensions and functions can be customized to client requirements; specifications subject to change without notice.
