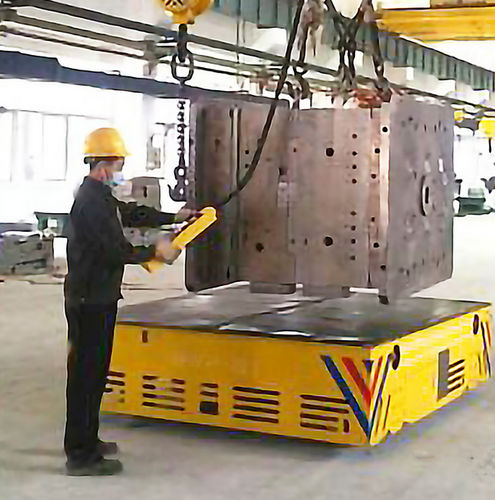

Transfer AGV BWP series

for heavy loadsfor logisticsfor the automobile industry

Customizd AGV is a customizable automated guided vehicle designed for automated logistics transportation to reduce labour costs and improve production efficiency.

Overview and main advantages

• Surface treatment: shot blasting and stoving varnish for corrosion protection.
• Hydraulic system: high-quality pump station provides stable lifting and lowering for hand‑hydraulic lift table functions.
• Standards: manufactured to meet CE and related standards.
• Applications: suitable for automotive, warehousing/logistics, papermaking and multi-level warehouses for lifting, load transport, order picking, die handling and assembly operations.
• Reliability & stability: overload valve design and internal hydraulic velocity fuses protect equipment and reduce maintenance costs; heavy-duty steel construction for harsh environments; two rigid front wheels and two rear swivel wheels (with brake) improve manoeuvrability.
• Safety & operator ergonomics: safety stops for maintenance operations; reduces bending and manual lifting to lower injury risk. Warning: do not move while under load; never use to lift people; unauthorised maintenance or operation is prohibited.

Features for transfer cart

• Size and functions are customisable to specification.
• Drive module design: no skidding, light operation and strong turning capability.
• In-situ rotation technology enables turning in confined spaces and narrow passages.
• Operator interface: car body equipped with simple operation keys (press to go, automatic stop at station) allowing use without specialised training.
• Adjustable running speed, up to 1 m/s (speed can be adjusted to meet workshop logistics requirements).

Product Parameter

• BWP-2T
  • Table size (m): 2.0×1.5×0.45
  • Power: Maintenance‑free battery
  • Wheel base: 1080 mm
  • Wheel dia.: 250 mm
  • Running speed: 0–20 m/min
  • Motor power: 2×1.2 kW
  • Battery capacity: 250 Ah
  • Battery voltage: 24 V
  • Max wheel load: 14.4 kN
  • Reference weight: 2.3 t
• BWP-10T
  • Table size (m): 2.3×2.0×0.55
  • Power: Maintenance‑free battery
  • Wheel base: 1650 mm
  • Wheel dia.: 350 mm
  • Running speed: 0–20 m/min
  • Motor power: 2×2.2 kW
  • Battery capacity: 250 Ah
  • Battery voltage: 48 V
  • Max wheel load: 42.6 kN
  • Reference weight: 4.2 t
• BWP-30T
  • Table size (m): 3.5×2.2×0.7
  • Power: Maintenance‑free battery
  • Wheel base: 1650 mm
  • Wheel dia.: 450 mm
  • Running speed: 0–20 m/min
  • Motor power: 2×5.5 kW
  • Battery capacity: 450 Ah
  • Battery voltage: 48 V
  • Max wheel load: 110.4 kN
  • Reference weight: 6.8 t
• BWP-50T
  • Table size (m): 5.5×2.6×0.8
  • Power: Maintenance‑free battery
  • Wheel base: 2000 mm
  • Wheel dia.: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 2×7.5 kW
  • Battery capacity: 500 Ah
  • Battery voltage: 48 V
  • Max wheel load: 174 kN
  • Reference weight: 8 t
• BWP-80T
  • Table size (m): 6.5×2.8×0.95
  • Power: Maintenance‑free battery
  • Wheel base: 1950 mm
  • Wheel dia.: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 30 kW
  • Battery capacity: 800 Ah
  • Battery voltage: 72 V
  • Max wheel load: 185 kN
  • Reference weight: 14.6 t
• BWP-100T
  • Table size (m): 6.6×3.0×1.2
  • Power: Maintenance‑free battery
  • Wheel base: 2000 mm
  • Wheel dia.: 600 mm
  • Running speed: 0–20 m/min
  • Motor power: 40 kW
  • Battery capacity: 1000 Ah
  • Battery voltage: 72 V
  • Max wheel load: 190 kN
  • Reference weight: 26.8 t

Technical specifications

• Series name: BWP series (models available: 2T, 10T, 30T, 50T, 80T, 100T).
• Power source: maintenance‑free battery (voltages and capacities vary by model: 24 V/250 Ah to 72 V/1000 Ah).
• Drive and steering: drive module designed for no skidding, light operation and in‑situ rotation for tight spaces.
• Typical running speed: adjustable; product notes up to 1 m/s (adjustable) though parameter table lists 0–20 m/min for standard settings.
• Primary applications: automotive, warehousing/logistics, papermaking and multi‑level (stereoscopic) warehouses for automated material handling.
• Surface protection: shot blasting plus stoving varnish for corrosion resistance.
• Compliance: CE and related standards.
• Safety notes: do not move while under load; never carry people; unauthorised maintenance or operation is prohibited.
