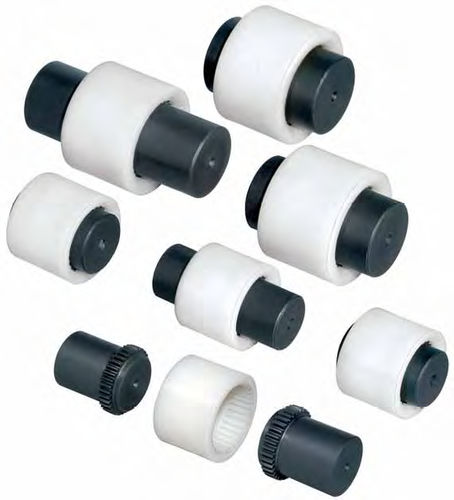

Curved-tooth gear coupling SG series
sleeve

curved-tooth gear coupling
curved-tooth gear coupling
Add to favorites
Compare this product


Characteristics

Type
curved-tooth gear
Installation system
sleeve
Torque

Min.: 0 Nm (0 ft.lb)

Max.: 840 Nm (619.5522 ft.lb)

Description

toothed couplings with pa sleeve Flexible gear couplings SG series are commercial couplings for general purpose, featuring high quality standards as well as technical characteristics and performances which are peculiar of industrial couplings. From a constructive point of view flexible gear couplings are made of two symmetric steel hubs and a synthetic resin sleeve ensuring connection and power transmission between the two hubs. The relative resistance of the polymer to outside humidity and its capacity to endure temperatures between -20°C and +120°C, with short peaks up to +150°C, make the coupling ideal to bear heavy working conditions even in adverse environments. Toothed couplings with pa sleeve offer following advantages: Compact design, reduced weight and moment of inertia Constant-velocity movement Noiseless running, elastic damping of shocks and vibrations Resistance to the most common chemicals and to moderate heat, max 80°C Self-lubricating, nonconductive and maintenance free Reasonable price, easy to mount, suitable for multiple duties, even the heaviest ones.
