Characteristics
- Type
- flexible
- Other characteristics
- misalignment correction
- Installation system
- flange
- Torque
Max.: 7,200 Nm (5,310.4475 ft.lb)
Min.: 31.5 Nm (23.2332 ft.lb)
- Rotational speed
Max.: 3,600 rpm (22,619.47 rad.min-1)
Min.: 100 rpm (628.32 rad.min-1)
Description

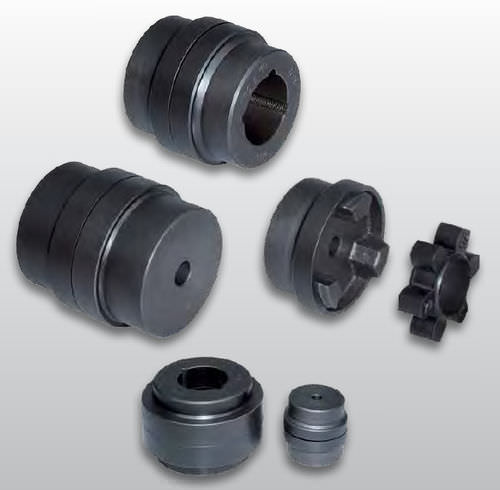

SG-HRC Couplings are couplings for general application with a flexible element which can counterbalance higher degree of misalignment:
Parallel misalignment up to 0.5 mm and Axial misalignment up to 1.7 mm. Because of their superior design HRC couplings can fit larger shafts which make them a very interesting product.
