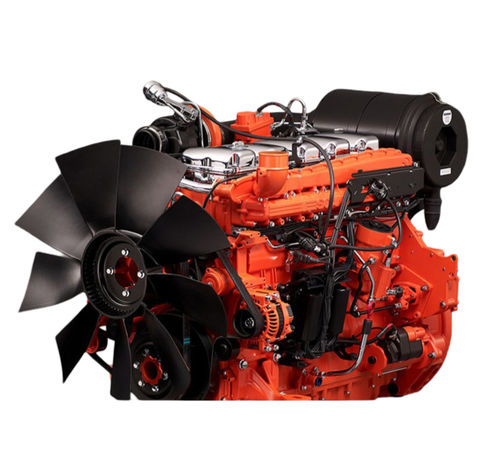

Diesel engine DC09 074A

diesel engine
diesel engine
Add to favorites
Compare this product


Number of cylinders
turbocharged, electronically carbureted, in-line
Product applications
for the construction industry, agriculture
Cooling system
air cooling
Emissions level
Stage II, Stage I
Other characteristics
4-stroke, oil-cooled

Max.: 294 kW
(399.729 hp)

Min.: 195 kW
(265.126 hp)


Max.: 1,830 Nm

Min.: 919 Nm

Rotational speed

1,200 rpm, 1,500 rpm, 1,800 rpm, 2,100 rpm
(7,539.82 rad.min-1, 9,424.78 rad.min-1, 11,309.73 rad.min-1, 13,194.69 rad.min-1)


9.3 l
(2.457 gal)


950 kg
(2,094.39 lb)


1,242 mm
(48.9 in)


The industrial engines from Scania are based on a robust design with a strength optimized cylinder block containing wet cylinder liners that can easily be exchanged. Individual cylinder heads with 4 valves per cylinder promotes reparability and fuel economy. The engine is equipped with a Scania developed Engine Management System, EMS, in order to ensure the control of all aspects related to engine performance. The injection system is based on electronically controlled unit injectors that give low exhaust emissions with good fuel economy and a high torque. The engine can be fitted with many accessories such as air leaners, PTOs and flywheels in order to suit a variety of installations. Standard equipment • Unit injectors, PDE • Turbocharger • Saver ring in cylinder liner • Fuel filter and extra pre-filter with water separator • Oil filter, full flow • Centrifugal oil cleaner • Oil cooler, integrated in cylinder block • Oil filler, in valve cover • Deep front oil sump • Oil dipstick, in cylinder block • Magnetic drain plug for oil draining • Starter motor, 1-pole 6.0 kW • Alternator, 1-pole 100 A • Flywheel, for use with friction clutch • Silumin flywheel housing, SAE 1 flange • Front mounted engine suspension • Open crankcase ventilation Optional equipment • Cooling package • Puller and pusher fans • Fan ring with sealing • Hydraulic pump • Air compressor • AC compressor • Side-mounted PTO • Front-mounted PTO • Exhaust connections • Engine heater • Flywheels SAE11.5”, SAE14”, DANA15/16”, DANA17” flexplate, ZF WG260 • Stiff rubber engine suspension • Air cleaner • Closed crankcase ventilation • Studs in flywheel housing
