Overview

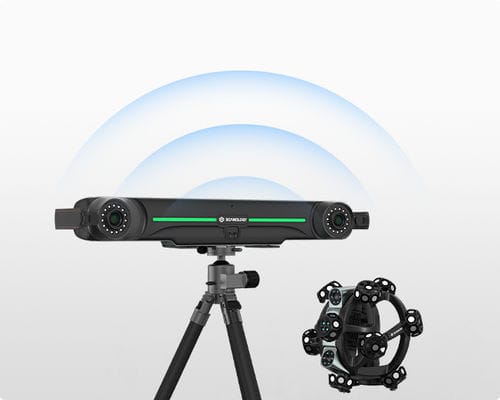

NimbleTrack Gen2 by Scanology is a wireless optical 3D scanning system combining marker-free acquisition, metrology-grade accuracy and portability. It supports both high-resolution optical 3D scanning and a handheld wide-area scanning mode via integrated laser projection for efficient capture of small to extra-large parts.

Highlights

• Wireless design with high-performance batteries and edge computing for stable high-speed wireless data transmission.
• Measurement rate up to 6,630,000 measurements/s.
• System accuracy up to 0.025 mm; scanner-only accuracy up to 0.020 mm.
• Resolution up to 0.020 mm; stand-off distance 300 mm; depth of field 400 mm.
• Scanning area up to 500 mm × 600 mm; scanning frame rate 120 fps.

Scan modes

• Ultra-fast scanning — 54 blue laser lines (high-speed mode).
• Hyperfine scanning — 17 blue parallel laser lines for fine detail.
• Deep hole scanning — 1 extra blue laser line for narrow/deep features.
• Large area scanning — 54 blue laser lines for wide coverage.
• Photogrammetry — adaptive photogrammetry for long-range and volumetric accuracy.

Key features

• Dual operation modes: optical 3D scanning and handheld wide-area scanning (tracker can act as handheld scanner to extend point-cloud capture).
• Extended tracking: tracker with edge calibration and rigid structure provides extended tracking distance (up to 4.2 m for NimbleTrack-E Gen2).
• Large-part capability: suitable for small to extra-large components with efficient, high-precision workflows.
• Probing support: custom adapters and optional i-Probe enable 6D pose capture and probing of inaccessible areas (wired and wireless probe options).
• Optional edge inspection module: gray-value measurement for precise closed-feature inspection (holes, slots, edges) including positions and diameters.

Applications

• Aerospace
• Mold & die making
• Automotive
• Energy and heavy industry
• Railway and shipbuilding
• General industrial inspection and reverse engineering

Technical specifications

• Type: NimbleTrack-C Gen2 / NimbleTrack-E Gen2
• Scan modes: Ultra-fast (54 blue laser lines); Hyperfine (17 lines); Deep hole (1 extra line); Large area (54 lines); Adaptive photogrammetry
• Accuracy (scanner-only): up to 0.020 mm
• Accuracy (system): up to 0.025 mm
• Tracking distance per i-Tracker: 3500 mm (NimbleTrack-C Gen2); 4200 mm (NimbleTrack-E Gen2)
• Volumetric accuracy: 3.5 m — 0.060 mm (C) / 0.059 mm (E); 4.2 m — 0.072 mm (E)
• With photogrammetry: 0.044 mm + 0.012 mm/m
• Tracker-only scanning: 0.072 mm + 0.012 mm/m
• Hole position accuracy: 0.050 mm
• Laser class: Class II (eye-safe)
• Resolution up to: 0.020 mm
• Stand-off distance: 300 mm
• Depth of field: 400 mm
• Maximum scanning area: 500 mm × 600 mm
• Scanning frame rate: 120 fps
• Measurement rate up to: 6,630,000 measurements/s
• i-Scanner dimensions: 252 mm × 195 mm × 260 mm
• i-Scanner weight: 1.3 kg (net); 1.4 kg (with battery and wireless module)
• i-Tracker dimensions: 570 mm × 87 mm × 94 mm
• i-Tracker weight: 2.2 kg (net); 2.6 kg (with battery and wireless module)
• Protection case size: 1000 mm × 425 mm × 280 mm
• Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
• Operating temperature: -10°C to 40°C
• Operating humidity (non-condensing): 10–90% RH
• Wireless modes: i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, multi-tracker tracking, Edge Inspection
• Wireless standard: Wi-Fi 6; 802.11a/b/g/n/ac
• Interfaces: USB3-B, Gigabit Ethernet
• Patents: multiple CN, US, KR and EP patents (manufacturer information)
