3D scanning system NimbleTrack-CR

for quality controlfor 3D printinginspection

Product Overview

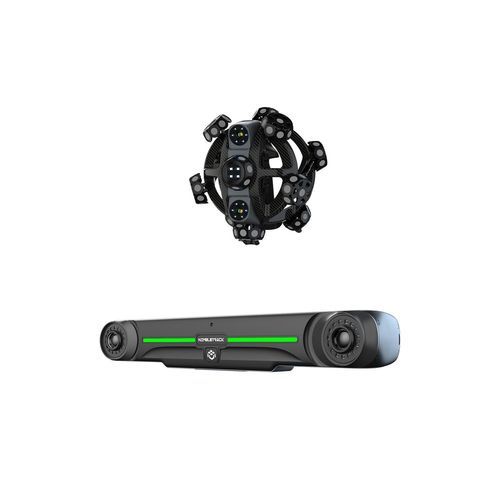

NimbleTrack-CR is an intelligent and wireless 3D scanning system designed for ultimate detail capture. Built on the NimbleTrack series’ advanced features—wireless freedom, lightweight and portable design, and high accuracy—this next-generation solution captures fine features and intricate structures for industrial metrology, cultural heritage preservation, research, and restoration.

Core capabilities

• High-detail capture with state-of-the-art optical imaging and intelligent algorithms including advanced cross technology and sub-pixel image processing.
• Equipped with high-performance industrial cameras and intelligent software algorithms to ensure accurate and highly detailed scans.
• Lightweight and portable: 230 mm diameter and ~1.3 kg net weight; designed to fit in a single case for transport and storage.
• Edge computing and wireless operation: on-board computing module, built-in batteries for scanner and tracker, WNIC (wireless) design for untethered scanning workflows.
• Multi-mode scanning: supports ultra-fast, hyper-fine and deep-hole scanning to adapt to different scanning needs.
• Multi-material compatibility: scans textiles, ceramics, bronze, sheet metal and more without the need for coating, protecting delicate surfaces.
• Adaptable to diverse environments including indoor and outdoor (even under direct sunlight) and suitable for small to medium-sized parts.

Software and usability

• Smart Resolution: automatically adjusts scanning resolution based on object features and environment prior to scanning.
• Color Indicators: displays scanned and unscanned areas in different colors in real time to help identify blind spots and missing data.
• Real-time Multi-Resolution: allows resolution adjustments during scanning to capture complex geometry and critical details.
• Integrated workflows for 3D scan + texture mapping to reproduce colors, textures and geometry for lifelike digital archives and exhibitions.

Applications

• Industrial measurement and quality control (small to medium parts, complex curves and contours, turbine blades, etc.).
• Cultural heritage preservation (non-contact, damage-free scanning, high-fidelity scans for restoration and digital archiving).
• Art design, educational research, reverse engineering and other digitalization tasks.

Notes on safety and certification

• Heritage preservation mode is Class I laser certified for non-contact, safe scanning of delicate artifacts.
• System and measurement performance are ISO 17025 accredited (evaluated based on VDI/VDE 2634 Part 3 and JJF 1951).

Technical specifications

• Type: NimbleTrack-CR
• Scan modes: Ultra-fast scanning (17 blue laser crosses); Hyperfine scanning (7 blue parallel laser lines); Deep hole scanning (1 blue laser line)
• Accuracy (scanner-only mode): Up to 0.020 mm
• Accuracy (system): Up to 0.025 mm
• Tracking distance per i-Tracker: 3200 mm
• Volumetric accuracy (Tracking distance 3.2 m): 0.064 mm
• Volumetric accuracy (With MSCAN photogrammetry system): 0.044 mm + 0.012 mm/m
• Hole position accuracy: 0.050 mm
• Laser class: Class II (eye-safe)
• Resolution up to: 0.010 mm
• Stand-off distance: 250 mm
• Depth of field: 300 mm
• Scanning area up to: 150 mm × 190 mm
• Scanning frame rate: 120 fps
• Measurement rate up to: 4,900,000 measurements/s
• Dimension of i-Scanner: 238 mm × 203 mm × 230 mm
• Weight of i-Scanner: 1.3 kg (Net weight); 1.4 kg (with battery and wireless module included)
• Dimension of i-Tracker: 570 mm × 87 mm × 94 mm
• Weight of i-Tracker: 2.2 kg (Net weight); 2.6 kg (with battery and wireless module included)
• Size of protection case: 1000 mm × 425 mm × 280 mm
• Output formats: .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, etc.
• Operating temperature range: -10°C – 40°C
• Operating humidity (non-condensing): 10–90% RH
• Wireless operating mode: i-Scanner, i-Tracker, i-Scanner + i-Tracker, i-Tracker + i-Probe, Wireless multi-tracker tracking, Edge Inspection
• Wireless standard: Wi-Fi 6, 802.11a/b/g/n/ac
• Interface mode: USB 3.0, Gigabit Ethernet
• Patents: CN109000582B, CN211121096U, CN210567185U, CN111678459B, CN114001696B, CN114554025B, CN114205483B, CN113514008B, CN114627249B, CN112867136B, CN218103220U, CN218103238U, CN307756797S, CN113340234B, CN112964196B, CN115289974B, CN113188476B, CN218411072U, CN115325959B, CN218584004U, CN115661369B, CN218734448U, CN115493512B, CN110992393B, CN116136396B, CN113432561B, CN219834226U, CN219829788U, CN116244730B, CN116206069B, US10309770B2, US11060853B2, KR102096806B1, EP3392831B1, US11493326B2
• Notes: (1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated. (2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
