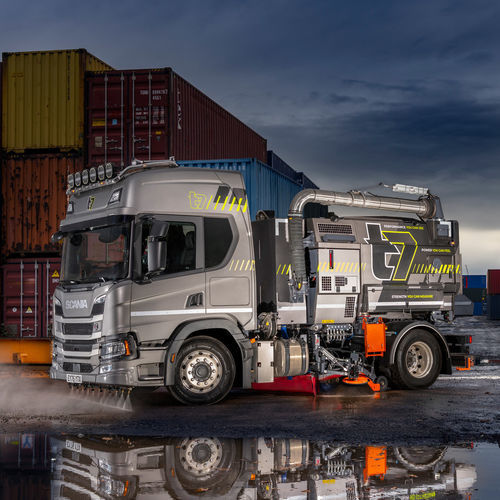

Truck-mounted mechanical sweeper SCARAB T7

dieselcombustion enginediesel engine

Product overview
The SCARAB T7 is a heavy-duty twin-engine truck-mounted road sweeper engineered for the world’s toughest environments. Combining a high-power auxiliary engine, SCARAB’s short optimized airflow path and a high-speed fan, the T7 delivers first-pass sweeping performance across road planing, surface dressing, highway maintenance and construction sites.

Vehicle specification

• Size: 15 - 18 tonne GVW
• Sweeping speed: 0 - 20 mph (0 - 32 kph)
• Hopper capacity: 6.6 m³ (4 mm stainless steel)
• Water tank: 1650, 2000 or 2500 litres
• Auxiliary engine: Deutz TCD 3.6 Stage V – 56 kW or 105 kW
• Typical payload: up to 10,000 kg
• Sweep width: up to 3650 mm

A Performance Powerhouse
The T7 is offered with Deutz TCD 3.6 Stage V auxiliary engine options (56 kW and 105 kW). The compact, high-power auxiliary engine provides excellent power density, maximizes payload potential and supports 500-hour service intervals.

For Any Job Site
The T7 features a 6.6 m³ hopper constructed from 4 mm stainless steel with a reinforced rear door and a tipping angle up to 55° for efficient emptying. The standard short airflow path and high-speed fan configuration deliver powerful suction and reliable material handling.

Operator First, By Design
The cab includes SCARAB’s Generation 4 CANbus control system with an interactive touchscreen and a redesigned door pod. Operators can select four working modes at the touch of a button: Eco, Standard, Boost and Super Boost.

Performance You Can See

• Maximum Power - 105 kW or 56 kW auxiliary Deutz engine options for fuel efficiency and global support.
• High-Capacity Design - 6.6 m³ stainless steel hopper with reinforced door and 55° tipping angle.
• Efficient Suction - Short, optimised airflow and high-speed fan system as standard.
• On-Task Endurance - 1650-litre stainless steel water tank standard; 2000 and 2500-litre upgrades available.
• Flawless Finish - Optional 13 m hose reel with hand lance or gun for wash-down.
• Any Application - Heavy-duty nozzle boxes and in-cab variable tilt control.

Power You Can Feel

• Effortless Gully Clearance - Optional 200 mm pneumatic-assisted overhead boom with 5 m reach and increased hose diameter.
• Hassle-Free Refuelling - Both fuel tanks located on one side to reduce downtime.
• Versatile Lighting - Wide range of lighting options including beacons, work lights and scene lighting.
• Maximum Uptime - Debris-minimising hopper design with remote screen lift, screen shaker and fan-cleaning assist.
• One-Touch Operation - Instantly switch operating modes: Eco, Standard, Boost, Super Boost.
• Intuitive Control - Generation 4 CANbus system with touchscreen and redesigned door pod.

Strength You Can Measure

• Lifetime Hopper Warranty - Every T7 comes with a lifetime hopper warranty (terms and conditions apply).
• World-Class After-Sales Support - Same-day parts availability, tailored service plans and self-warranty options.
• Made in Britain - Engineered and manufactured in the UK.
• Do More - Optional drawbar trailer coupling (including VBG) on selected chassis.
• Enhanced Flexibility - Designed with clearance for retrofittable rear suction.

Technical specifications

• Model: SCARAB T7
• GVW range: 15 - 18 tonne
• Sweeping speed: 0 - 20 mph (0 - 32 kph)
• Hopper capacity: 6.6 m³ (stainless steel, 4 mm)
• Hopper tipping angle: up to 55°
• Water tank: standard 1650 litres; optional 2000 or 2500 litres
• Auxiliary engine options: Deutz TCD 3.6 Stage V – 56 kW or 105 kW
• Typical payload: up to 10,000 kg
• Sweep width: up to 3650 mm
• Fan: high-speed fan configuration (standard)
• Control system: Generation 4 CANbus with interactive touchscreen
• Working modes: Eco, Standard, Boost, Super Boost
• Optional equipment: 13 m hose reel (hand lance/gun), 200 mm overhead boom (5 m reach), drawbar trailer coupling (selected chassis)
• Warranty: lifetime hopper warranty (T&Cs apply)
