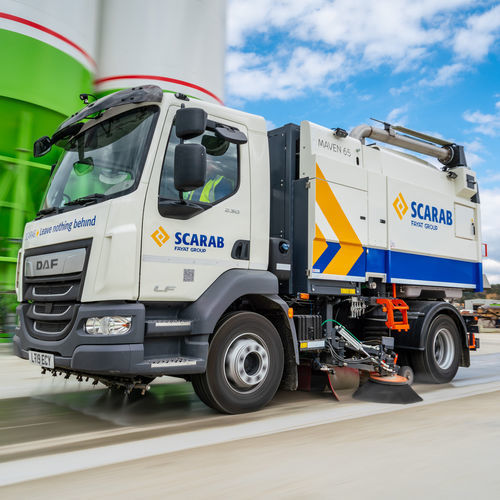

Truck-mounted mechanical sweeper Maven 65

streetdieselcombustion engine

Product overview

New to the Scarab range in 2021, the Maven 65 is a heavy-duty twin-engine road sweeper designed to be mounted on virtually any internationally available 12 to 18 tonne GVW truck chassis. It replaces the outgoing M65T and delivers improved performance, economy and serviceability for municipal and heavy-duty contractor applications. Key improvements include a 20% increase in suction performance via the standard high-speed fan system, increased fuel capacity to 200 litres for longer on-station time and an overall fuel consumption reduction of 20%. The machine offers a carefully selected range of options to meet varied operational demands.

Vehicle specification

Size: 12-18 tonne GVW
Sweeping speed: 0-20 mph / 0-32 kph
Hopper capacity: 6.5 cubic metres
Water tank: 1250-1900 litres
Engine: Deutz Stage V - 55.4kW
Typical payload: 4500-9500 kg
Sweep width: 2345mm single / 3600mm dual
Fuel capacity: 200 litres

Drive configuration

The Maven 65 is offered in a twin-engine configuration delivering quiet, efficient auxiliary power in a self-contained unit. The auxiliary engine is positioned between the hopper and cab for easy access to service points and filters from a large service platform. The design emphasises low emissions and long service intervals without the need for AdBlue.

Suction performance

The machine uses a stainless-steel centrifugal impellor positioned to create an efficient airflow path for high suction performance with reduced power consumption. The auxiliary engine speed is infinitely variable from 1200-1550 rpm, with a 1700 rpm fan boost option for tougher environments.

Sweeping configuration

The Maven 65 can switch between single and dual sweeping modes via an intuitive CANbus control system. When suction nozzle, side brush and widesweep operate the sweep width is 2345mm; simultaneous dual sweeping reaches a 3600mm span.

Hopper

The hopper is manufactured from corrosion and abrasion-resistant 4003 stainless steel, shot blasted, primed with a two-pack epoxy and finished with a hard-wearing topcoat. The particulate screening is hinged and swings down to provide operator access for cleaning.

CANbus control system

Scarab's CANbus control and colour monitor give the driver and service team comprehensive feedback including sweeping configuration, vehicle condition, warnings and service reminders. Real-time monitoring and data logging support troubleshooting and efficient operation.

After sales support

Scarab provides market-leading after-sales support including tailored service and maintenance contracts, a dedicated parts warehouse stocking genuine parts and the option of export skid units for local mounting in specific markets.

Options

• Water: High-pressure/high-volume pump with hand lance and self-retracting hose reel; additional dust suppression jets for suction tubes; simultaneous dual wash and sweep; additional 650 litre water tank.
• Brushes: Dual sweep (second channel brush and swivelling Widesweep); simultaneous dual sweep; adjustable pressure control for channel brushes and Widesweep; auxiliary channel brush; tilting brush; Vari Brush (variable in/out brush control).
• Suction system: Rear-mounted swing-out Wander Boom (left or right mounting); door-mounted rear boom; roof-mounted overhead boom; polyurethane coating of suction path components.
• Miscellaneous: CCTV camera to offside brush and/or rear; centralised lubrication (manual or automatic); alternative/additional beacons; work lights; dual door pods for Dual-Steer chassis.

Notes

Can be supplied as a completely factory-built machine or, for some markets, as an Export Skid Unit for local mounting. Some options are chassis dependent.

Technical specifications

• Model: Maven 65
• Application: Heavy-duty twin-engine road sweeper for municipal and contractor use
• Chassis compatibility: 12-18 tonne GVW
• Hopper capacity: 6.5 m3 (stainless steel 4003, shot blasted + epoxy primer + topcoat)
• Water capacity (standard / optional): 1250-1900 litres (additional 650 litre option)
• Engine (auxiliary): Deutz Stage V, 55.4 kW
• Fuel capacity: 200 litres
• Sweeping speed: 0-20 mph / 0-32 kph
• Sweep width: 2345 mm (single) / 3600 mm (dual)
• Typical payload: 4500-9500 kg
• Fan: High-speed fan system (standard) with 20% improved suction performance vs previous model; 1700 rpm boost available
• Control system: Scarab CANbus with colour monitor, data logging and diagnostics
• Options: High-pressure wash, auxiliary channel brush, overhead boom, wander boom, CCTV, centralised lubrication, and more (chassis-dependent)
