Conventional lathe 70Mihorizontaldirect-drive
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Drive system
- direct-drive
- Diameter
85 mm, 130 mm
(3.35 in, 5.12 in)- Spindle speed
Max.: 8,000 rpm
(50,265.482 rad.min-1)Min.: 100 rpm
(628.319 rad.min-1)- Axe X
65 mm
(3 in)- Axe Z
65 mm
(3 in)- Nominal power
0.8 kW
(1.1 hp)- Overall lenght
1,800 mm
(71 in)- Overall width
800 mm
(31 in)- Overall height
1,400 mm
(55 in)- Weight
260 kg
(573 lb)
Description

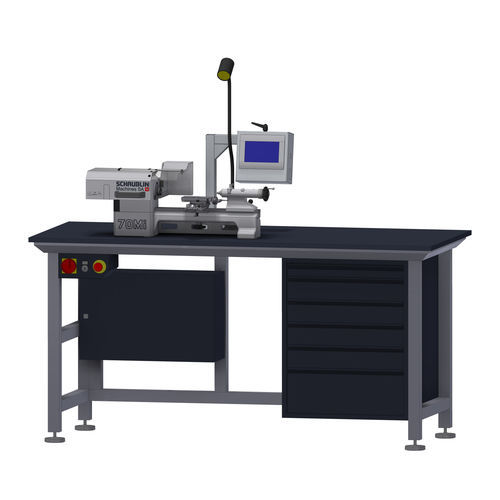

The SCHAUBLIN 70 lathe is a tried-and-tested product whose qualities and applications are recognized worldwide. This lathe is equipped with an integrated motor (Mi) which allows it to run at up to 8000[rpm]. The Mi reduces vibration thanks to a direct spindle drive. W12 collet.
