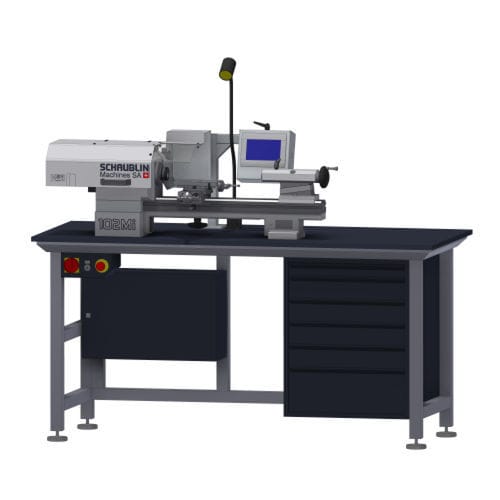

Conventional lathe 102Mihorizontal
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Diameter
120 mm, 200 mm
(4.72 in, 7.87 in)- Spindle speed
Max.: 6,000 rpm
(37,699.112 rad.min-1)Min.: 100 rpm
(628.319 rad.min-1)- Axe X
100 mm
(4 in)- Axe Z
90 mm
(4 in)- Nominal power
1.5 kW
(2 hp)- Overall lenght
2,000 mm
(79 in)- Overall width
800 mm
(31 in)- Overall height
1,370 mm
(54 in)- Weight
360 kg
(794 lb)
Description
In order to keep on with this tradition, the performances have been improved as well as the ease of use for the lathes 102. Digital preselection and display of spindle speeds, increased spindle power, high torque at low speeds, PLC for auxiliary functions. New spindles with integrated motor (Mi) further improve surface quality signature.
Available with W20 or W25 spindle.
