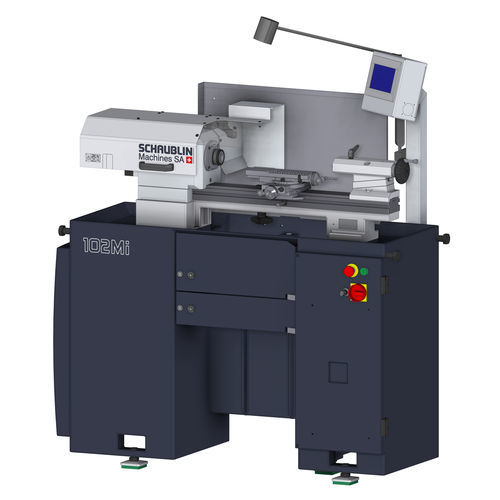

Conventional lathe 102 Mihorizontalhigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Performance
- high-precision
- Diameter
120 mm, 200 mm
(4.72 in, 7.87 in)- Spindle speed
Max.: 6,000 rpm
(37,699.112 rad.min-1)Min.: 100 rpm
(628.319 rad.min-1)- Axe X
100 mm
(4 in)- Axe Z
90 mm
(4 in)- Nominal power
2 kW
(2.7 hp)- Maximum torque
48 Nm
(35 ft.lb)- Coolant capacity
23 l
(6 gal)- Overall lenght
1,410 mm
(56 in)- Overall width
650 mm
(26 in)- Overall height
1,400 mm
(55 in)- Weight
570 kg
(1,257 lb)
Description
In order to keep on with this tradition, the performances have been improved as well as the ease of use for the lathes 102. Digital preselection and display of spindle speeds, increased spindle power, high torque at low speeds, PLC to manage all functions. New spindles with integrated motor (Mi) further improve surface quality signature.
Available with W20 or W25 spindle.
Catalogs
No catalogs are available for this product.
See all of SCHAUBLIN MACHINES‘s catalogsOther SCHAUBLIN MACHINES products
CONVENTIONAL TURNING
