Data connector AZM-Y-8P-IO

wire-to-wirescrew-lockedfemale

Product overview

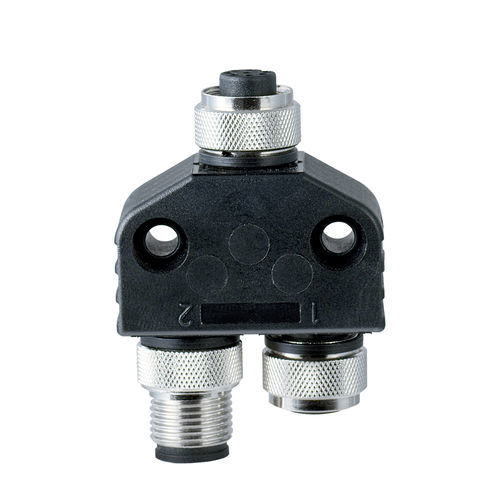

M12 Y-adapter connector for series wiring, model AZM-Y-8P-IO, providing one 8-pole male connection and two 8-pole female connections for sensor and actuator networks.

Key features

• Configuration: 1 x male 8-pole; 2 x female 8-pole
• Protection class: IP67
• Rated operating voltage: 30 VDC; Operating current up to 4000 mA (4 A)
• Compact size with M12 thread, suitable for confined installations

Technical specifications

• Model: AZM-Y-8P-IO
• Article number: 103000333
• EAN: 4030661504568
• Certificates: cULus
• eCl@ss (v12.0 / v11.0 / v9.0): 27-44-01-06
• ETIM (v7.0 / v6.0): EC002925
• Gross weight: 60 g

Mechanical data

• Tightening torque, max: 1 Nm
• Connector coding (side A): A
• Connector latching: Screw locking
• Gland material: Metal (CuZn), nickel-plated
• Handle material: Plastic (TPU)

Electrical data

• Rated operating voltage: 30 VDC
• Operating current: 4000 mA (4 A)
• External wire/device fuse rating: 4 A
• Power supply for external devices — rated operating current: 1000 mA (1 A)

Environmental & dimensions

• IP rating: IP67
• Ambient temperature: -25 ... +75 °C
• Dimensions (L×W×H): 54.5 mm × 38 mm × 20 mm
• ISO-thread diameter: M12

Applications & recommendations
Designed for series wiring of sensors and solenoid interlocks; recommended combination: sensors and solenoid interlock.
