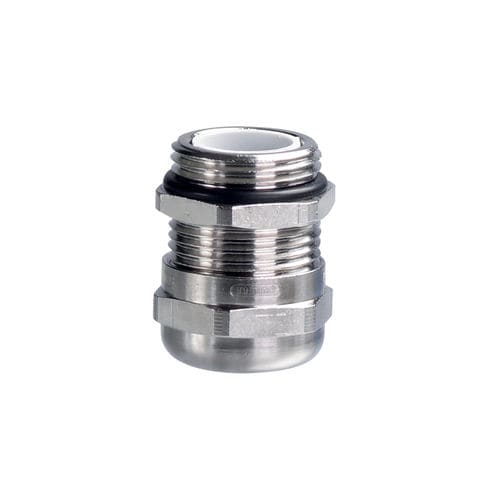

Nickel-plated brass cable gland ACC-CGLD-M20-MS

IP68IP69Kmetric

Product features

• Cable gland for M20 thread
• Material: nickel-plated brass
• Protection class: IP68, IP69K

Ordering data
Product type description: ACC-CGLD-M20-MS
Article number (order number): 103006011
EAN (European Article Number): 4030661439785
eCl@ss number, version 12.0: 27-14-08-02
eCl@ss number, version 11.0: 27-14-44-34
eCl@ss number, version 9.0: 27-14-44-34
ETIM number, version 7.0: EC000441
ETIM number, version 6.0: EC000441


General data
Material: Nickel plated brass
Gross weight: 28 g


Mechanical data
Tightening torque of nuts, maximum: 8 Nm


Mechanical data - Connection technique
Authorised cable section, minimum: 6 mm
Authorised cable section, maximum: 12 mm


Mechanical data - Dimensions
Screw length: 29.3 mm
Thread length of the screw: 6 mm
Screw diameter: 24.4 mm
Diameter, metric ISO thread with pitch indication: M20 x 1.5


Ambient conditions
IP Degree of protection: IP68, IP69K


Technical specifications

• Model / Denomination: ACC-CGLD-M20-MS
• Article number: 103006011
• EAN: 4030661439785
• Material: Nickel plated brass
• Gross weight: 28 g
• Cable gland size: M20
• Protection class: IP68, IP69K
• Tightening torque (max): 8 Nm
• Authorised cable section: 6 mm – 12 mm
• Screw length: 29.3 mm
• Thread length: 6 mm
• Screw diameter: 24.4 mm
• Metric thread: M20 x 1.5
