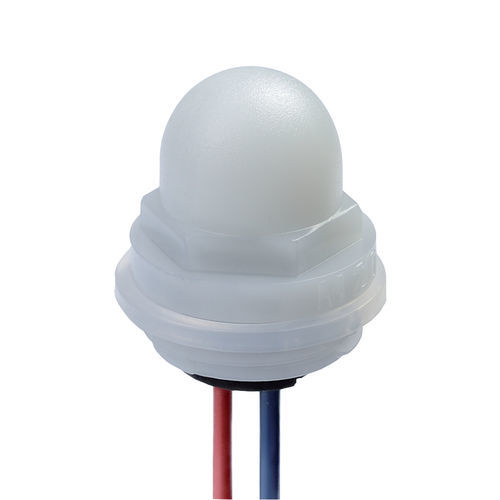

LED indicator light ACC-IL-G24-M20-OR

threadedIP67round

Product features

• Amber LED with white (clear) dome for optical signalling
• Screw-in for M20 x 1.5 cable entries; pre-wired 0.2 m cable

Ordering data
Product type description: ACC-IL-G24-M20-OR
Article number (order number): 161186263
EAN (European Article Number): 4030661350608
eCl@ss number, version 12.0: 27-37-12-11
eCl@ss number, version 11.0: 27-37-12-11
eCl@ss number, version 9.0: 27-37-12-11
ETIM number, version 7.0: EC000223
ETIM number, version 6.0: EC000223

General data
Colour of the dome: White
Gross weight: 21 g

General data - Features

• Indicator lamp: Yes
• Number of cable wires: 2
• Optical signal: Yes

Mechanical data
Tightening torque, maximum: 1.5 Nm

Mechanical data - Connection technique
Length of cable: 0.2 m
Wire cross-section: 0.34 mm²
Wire cross-section: 22 AWG

Mechanical data - Dimensions
Mounting height: 20 mm
Width across flats: 17 BK
Diameter of the dome: 15 mm
Diameter, metric ISO thread with pitch indication: M20 x 1.5

Ambient conditions
IP Degree of protection: IP67
Ambient temperature: -5 ... +70 °C

Electrical data
Rated operating voltage: 24 VDC
Operating current: 20 mA

Status indication
Colour of the LED: Orange (amber)

Characteristics / technical specifications

• Model: ACC-IL-G24-M20-OR
• Brand: Schmersal
• Article number: 161186263
• EAN: 4030661350608
• Indicator lamp: Yes
• LED colour: Orange / amber
• Dome colour: White
• IP rating: IP67
• Rated voltage: 24 VDC
• Operating current: 20 mA
• Cable length: 0.2 m
• Wire cross-section: 0.34 mm² (22 AWG)
• Mounting height: 20 mm
• Dome diameter: 15 mm
• Thread: M20 x 1.5
• Tightening torque max: 1.5 Nm
• Gross weight: 21 g
