DIN rail power supply ML30.241-70
AC/DCregulatedsingle-output

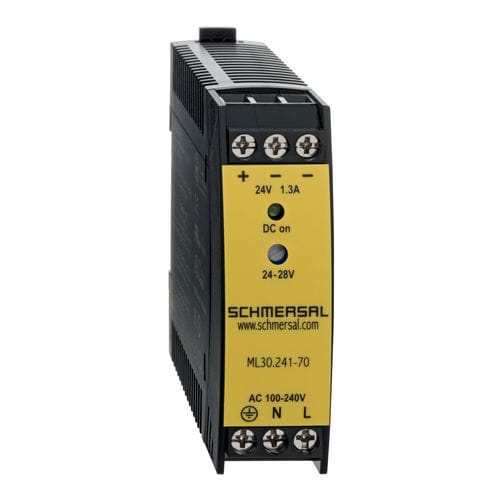

DIN rail power supply - ML30.241-70 - SCHMERSAL - AC/DC / regulated / single-output
DIN rail power supply - ML30.241-70 - SCHMERSAL - AC/DC / regulated / single-output
Add to favorites
Compare this product
Go to the SCHMERSAL website for more information

Characteristics

Mounting / format
DIN rail
Type
AC/DC
Output
single-output, regulated, adjustable
Technology
switching, SMPS
Network
single-phase
Protection class
IP20
Connection
with screw terminal block
Applications
for control panels
Other characteristics
compact, with power factor correction
Input voltage

Max.: 240 V

Min.: 100 V

Output voltage

Max.: 28 V

Min.: 24 V

Current

Max.: 1.3 A

Min.: 1.1 A

Power

30 W

Description

Key features
  • 1-phase DIN rail power supply for industrial control applications
  • AC wide-range input: 100–240 VAC (50/60 Hz)
  • Adjustable DC output: 24–28 V (front potentiometer)
  • Maximum output power: 30 W; max current 1.3 A (24 V) / 1.1 A (28 V)
  • Efficiency up to 89.4% and integrated PFC coil
  • Compact width: 22.5 mm for space-saving cabinet layouts
  • Quick DIN rail mounting (IEC 60715) and screw terminal connections
  • Front LED for status and system diagnostics


Technical specifications
  • Brand: Schmersal
  • Model: ML30.241-70
  • Article number: 103015923
  • EAN: 4030661505275
  • Dimensions (W×H×D): 22.5 × 75 × 91 mm
  • Gross weight: 140 g
  • Degree of protection: IP20
  • Operating temperature: -10 … +70 °C
  • Storage/transport temperature: -40 … +85 °C
  • Standards: EN 50178; EN IEC 60204-1; EN IEC 60947 series; IEC 60364-4-41; IEC 62103; IEC 60068-2-27


Electrical data
  • Input voltage: 100 … 240 VAC (automatic wide-range selection)
  • Frequency: 50 Hz / 60 Hz
  • Output voltage: 24 … 28 V DC (adjustable via front potentiometer)
  • Maximum output current: 1.3 A (24 V) / 1.1 A (28 V)
  • Maximum output power: 30 W
  • Operating current: 0.3 mA / 0.54 mA
  • EMC: conforms to EMC-Directive


Mechanical & installation
  • Mounting: snaps onto standard DIN rails to IEC 60715
  • Connection: screw terminals; cable section 0.5–6 mm²; tightening torque 1 Nm
  • Allowed cable types: flexible and solid single-wire
  • LED status indicator and front potentiometer (output adjustment 22–28 V)


Ordering information
  • Product type description: ML30.241-70
  • Article number (order number): 103015923
  • eCl@ss number (v12.0 / v11.0 / v9.0): 27-04-07-01
  • ETIM number (v7.0 / v6.0): EC002540
