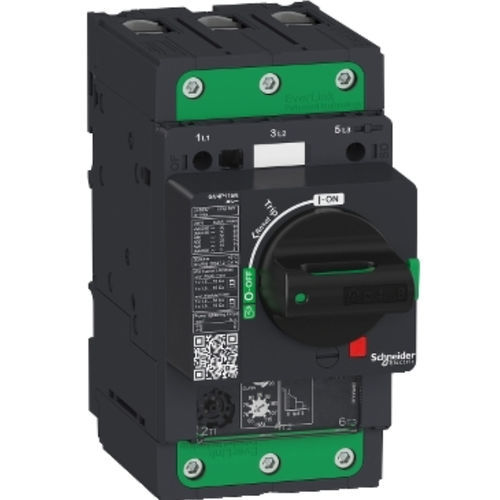

Thermal-magnetic circuit breaker GV4 series

motor protectioncompact

TeSys Deca Frame 4 is a cutting-edge technology that is both compact and robust. The electronic core of ref. GV4P gives great detection accuracy, as well as alarming and advanced protections for refs. GV4PEM and GV4PB. Magnetic, electronic thermal-magnetic, or electronic thermal magnetic versions with advanced protection. Save time • Simple to specify, install and use for all applications • Dual class to reduce commercial references • Smartphone access to facilitate maintenance on site Improve efficiency • Compact, space-saving design • One-click accessories with spring terminal • Externally visible auxiliaries Increase safety • 90-year history of engineering • EverLink technology ensures a lasting connection • Double rotary contact improves breaking capacity as Compact NSXm • Reflex tripping mechanism for double protection during short circuit Features Facts about TeSys Deca - Frame 4 • Covers motor protection from 0.25 to 55 kW at 415 V AC (from 0.8 to 115 A) all in one frame • Available in three different breaking capacities: - 25, 50, and 100 kA at 415 V AC IEC (15, 35, 65 kA at 480 V UL) • Patented EverLink creep-compensating technology - Spring-based system ensures a long-lasting connection - Improves overheating leading to a trip - Reduces risk during short circuits • Ergonomic rotary handle for easy switching and controlling with clear trip indication. Other options include: - Toggle - Side - Extended • Available in three different versions: • Type L: Magnetic short circuit protection to be used with an overload relay or a drive • Type P: Magnetic short circuit and overload protection - Electronic core for high-accuracy, wide settings, dual motor class 10/20
