Robotic tool changer CPS

automaticpneumatically-actuated

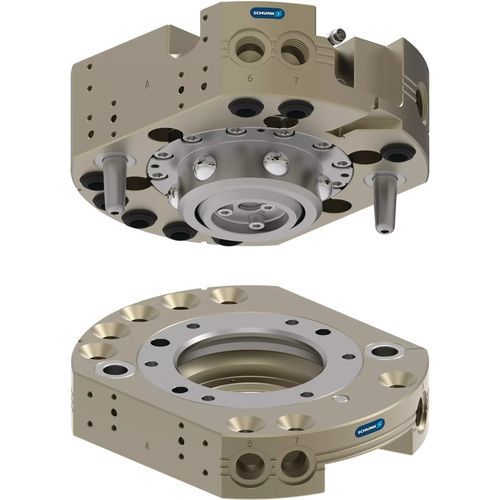

Pneumatically actuated tool changer with self-retaining function in the event of a loss of compressed air, the integrated piston spring ensures that gap formation is minimized. Advantages – Your benefits Wide range of sizes with 18 sizes, the CPS enables an optimal selection for every application Versatile media transmission extensive range of optional modules for feed-through of electrical and fluidic media extends the application possibilities of the tool change system Durability The use of hardened and stainless steel in all functional parts increases the bearing load capacity and extends the service life Easy assembly Installation is quick and easy using standardized adapter plates or directly on the mechanical interface The automatic tool changer CPS consists of a change master (CPS-K) and a change adapter (CPS-A). The CPS-K that is mounted on the robot couples and decouples the CPS-A which is mounted on the tool. The pneumatically actuated locking piston ensures a reliable connection. Suitable option modules supply the coupled tool. 1 Housing Weight-optimized due to the use of high-strength, hard-coated aluminum alloy 2 Piston Pneumatically driven, ensures locking/unlocking of the system 3 Locking mechanism Functional parts are made of hardened stainless steel. Locking balls ensure a quick and secure connection. Self-retaining during compressed air drop. Integrated spring prevents gap formation between master and adapter. 4 Integrated pneumatic feed-throughs Minimization of the interfering contour. Also suitable for transferring vacuum. 5 Sensor monitoring of the locking device Optional
